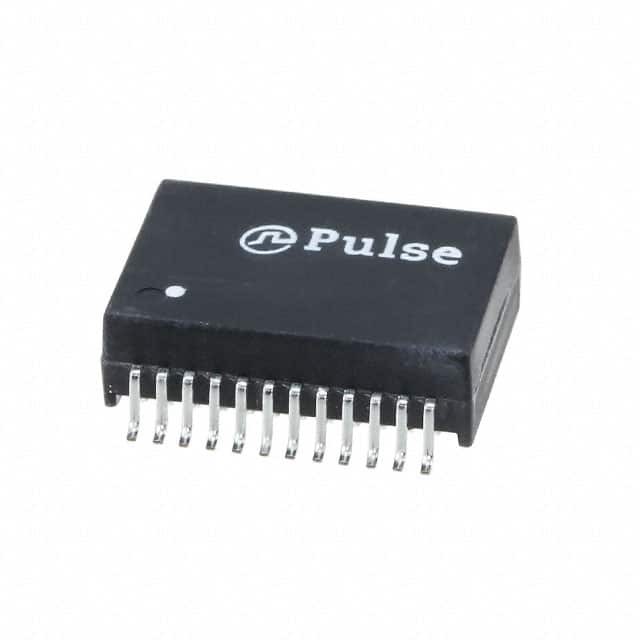

HX6106NL Pulse
Same model may have multiple batches, images only for reference.

HX6106NL

Part No HX6106NL
Manufacturer Pulse
Catalog Pulse Transformers
Description GIGABIT POE+ TRANSFORMER/CMC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Bulk
Product Status Active
Size / Dimension 0.715" L x 0.511" W (18.16mm x 12.98mm)
Height - Seated (Max) 0.410" (10.41mm)
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1224671-HX6106NL
Ultra Librarian 3D Model Ultra Librarian HX6106NL CAD Model

Description

The 1224671-HX6106NL is a pulse transformer designed for electronic applications. Bold the product name (e.g., BAV99S,135 → 1224671-HX6106NL) and manufacturer (e.g., Nexperia USA Inc. → Pulse).

  • Size: 0.715" L x 0.511" W (18.16mm x 12.98mm)
  • Height: 0.410" (10.41mm) seated
  • Package: Bulk
  • Product Status: Active
