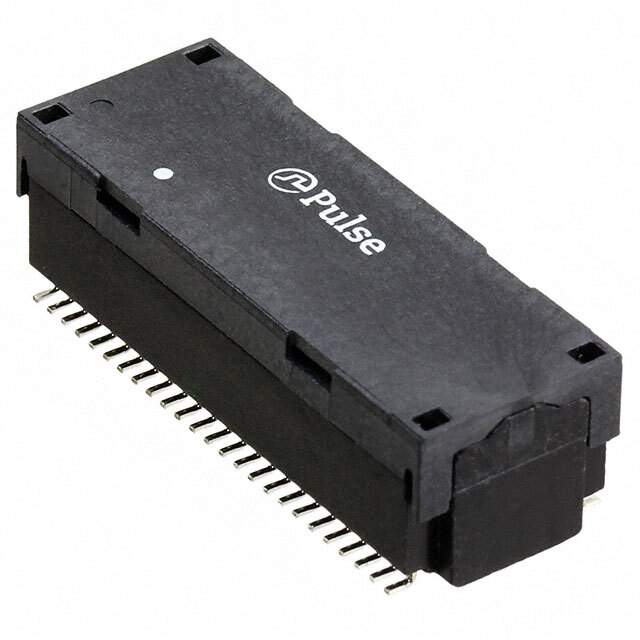

HX5020FNL Real Image
Same model may have multiple batches, images only for reference.

HX5020FNL

Part No HX5020FNL
Manufacturer Pulse
Catalog Pulse Transformers
Description MODULE DL GIGABIT ETHER LAN 48P / Telecom Transformer 1:1 0.65Ohm Prim. DCR 0.65Ohm Sec. DCR 50 Terminal Gull Wing SMD
Datasheet
HX5020FNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Series *
Packaging Tube
Mounting SMD
Dimension 1.100" L x 0.395" W (27.94mm x 10.03mm)
Height - Seated (Maximum) 0.328" (8.33mm)
Win Source Part Number 776261-HX5020FNL
Popularity Medium
Supply and Demand Status Limited
Family Name HX5020
Introduction Date August 13, 2013
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian HX5020FNL CAD Model

Description

The Pulse Electronics Corporation 776261-HX5020FNL transformer is a part of the HX5020 series and comes in tube packaging.

  • Series: HX5020
  • Packaging: Tube
  • Supply and Demand: Limited
  • Operating Temperature: 0°C to 70°C
  • Seated Height (Maximum): 0.328" (8.33mm)
  • Halogen Free: Yes
  • Dimensions: 1.100" L x 0.395" W (27.94mm x 10.03mm)
