Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse
Series -
Package Tube
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
ET (Volt-Time) -
Mounting Type Surface Mount
Size / Dimension 0.689" L x 0.600" W (17.50mm x 15.24mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating 0°C ~ 70°C
Weight -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Standard Package 25 pcs
Win Source Part Number 1382198-H5007EFNL
Ultra Librarian 3D Model Ultra Librarian H5007EFNL CAD Model

Description

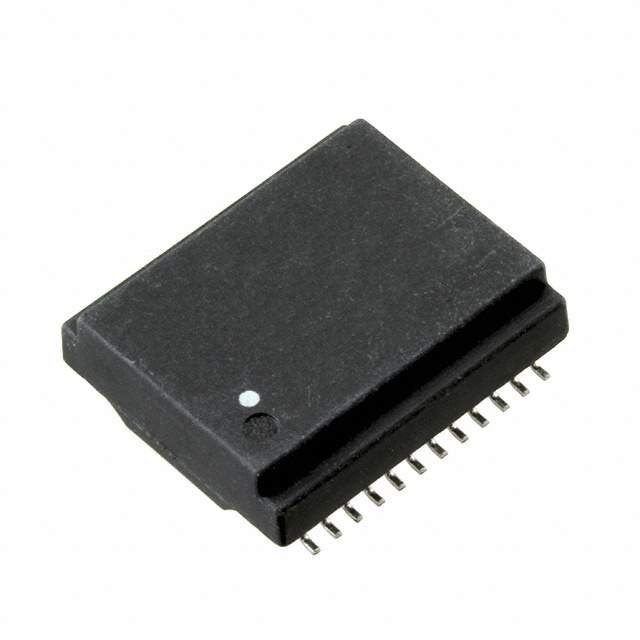

The 1382198-H5007EFNL is a LAN 10/100/1000 Base-T pulse transformer from Pulse.

  • Product Category: Pulse Transformers
  • Size: 0.689" L x 0.600" W (17.50mm x 15.24mm)
  • Height (Seated): 0.225" (5.72mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: 0°C to 70°C
  • Inductance: 350µH
  • Package: Tube
  • Standard Package: 25 Pieces
  • REACH Status: Unaffected
  • ECCN: EAR99
