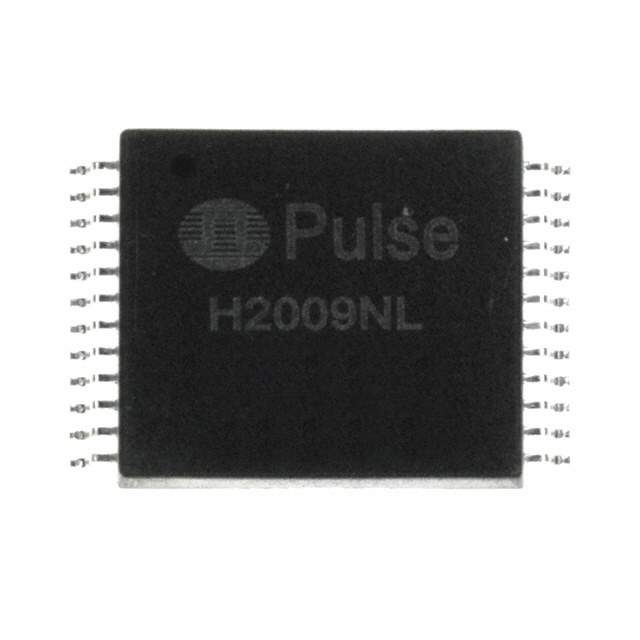

H2009NL Real Image
Same model may have multiple batches, images only for reference.

H2009NL

Part No H2009NL
Manufacturer Pulse
Catalog Pulse Transformers
Description RoHS peak reflow temperature rating 245C | MODULE XFRMR VOIP DL LAN 24-SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Style SMD
Parts Dimension 0.518" L x 0.595" W (13.16mm x 15.11mm)
Height - Seated (Maximum) 0.251" (6.37mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.06 oz (1.71g)
Manufacturer Pack Quantity 35
MSL Level 1 (Unlimited)
Win Source Part Number 1178246-H2009NL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian H2009NL CAD Model

Description

The Pulse Electronics Network 1178246-H2009NL is a tube packaged electronic component with a mounting style of SMD.

  • Type: Transformer type isolation and data interface (encapsulated) component
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Suitability: This component is suitable for applications that require a transformer type isolation and data interface (encapsulated) component.
