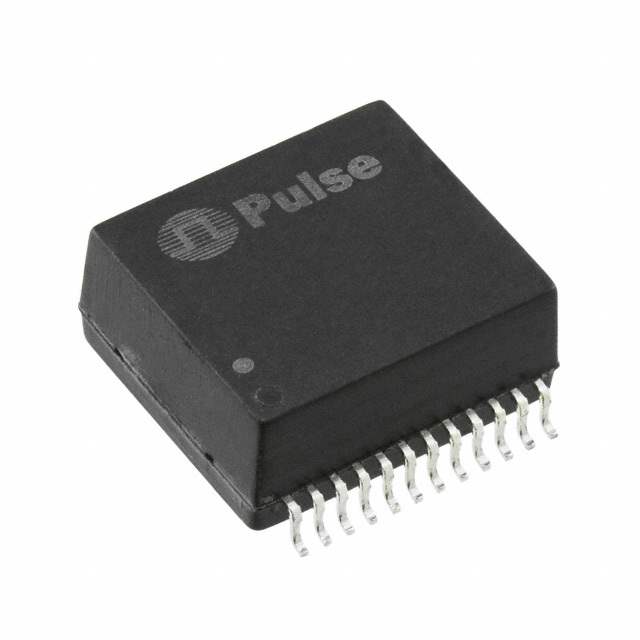

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.254" (6.45mm)
Weight 0.09 oz (2.56g)
Win Source Part Number 204529-H2006ANLT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian H2006ANLT CAD Model

Description

The Pulse Electronics Corporation H2006ANLT electronic component is an isolation and data interface transformer with a height of 0.254" (6.45mm) and a weight of 0.09 oz (2.56g). It has a medium popularity in the market with a balanced supply and demand status.
