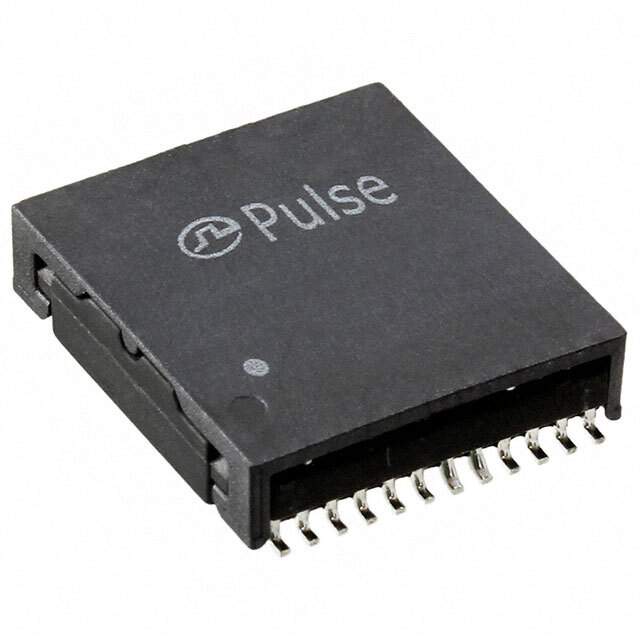

H1270FNL Real Image
Same model may have multiple batches, images only for reference.

H1270FNL

Part No H1270FNL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX 1CT:1CT RX / 350µH LAN 10G Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
H1270FNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tube
Transformer Type LAN 10G Base-T
Inductance 350µH
Mounting SMD (SMT)
Dimension 0.515" L x 0.574" W (13.08mm x 14.58mm)
Height - Seated (Max) 0.145" (3.68mm)
Temperature Range - Operating 0°C ~ 70°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 553-2220
Standard Package 35
Win Source Part Number 1015159-H1270FNL
Ultra Librarian 3D Model Ultra Librarian H1270FNL CAD Model

Description

Pulse Electronics Network presents a powerful transformer product that is designed to meet your specific needs.

  • Transformer Type: LAN 10G Base-T
  • Inductance: 350μH
