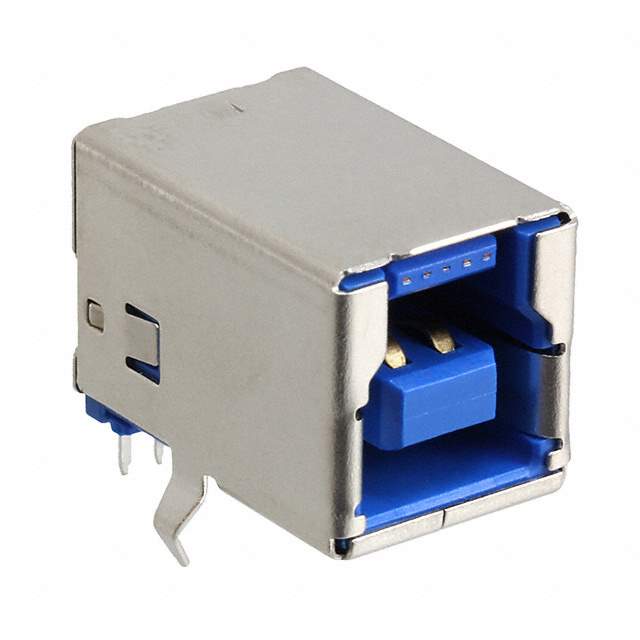

E8199-030-01

Name: E8199-030-01
Brand: Pulse
SKU: 1285030
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	E8199-030-01
Manufacturer	Pulse
Catalog	USB, DVI, HDMI Connectors
Datasheet	E8199-030-01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr	Pulse Electronics Network
Package	Bulk
Product Status	Obsolete
Connector Type	USB-B (USB TYPE-B)
Number of Contacts	9
Gender	Receptacle
Specifications	USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mounting Type	Through Hole, Right Angle
Mounting Feature	Horizontal
Termination	Solder
Features	Board Lock
Temperature Range - Operating	-20°C ~ 80°C
Number of Ports	1
Current Rating (Amps)	1.8A
Mating Cycles	5000
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Steel
Material Flammability Rating	UL94 V-0
Insulation Color	Blue
Other Names	553-2263,E8199-030-01
Standard Package	1,540
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285030-E8199-030-01
Ultra Librarian 3D Model	Ultra Librarian E8199-030-01 CAD Model

Description

The Pulse Electronics Network E8199-030-01 is a USB-B (USB TYPE-B) connector with board lock.

Current Rating: 1.8A
Specification: USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Shielded: Yes
Mounting Type: Through Hole, Right Angle
Win Source Part Number: 1285030-E8199-030-01
