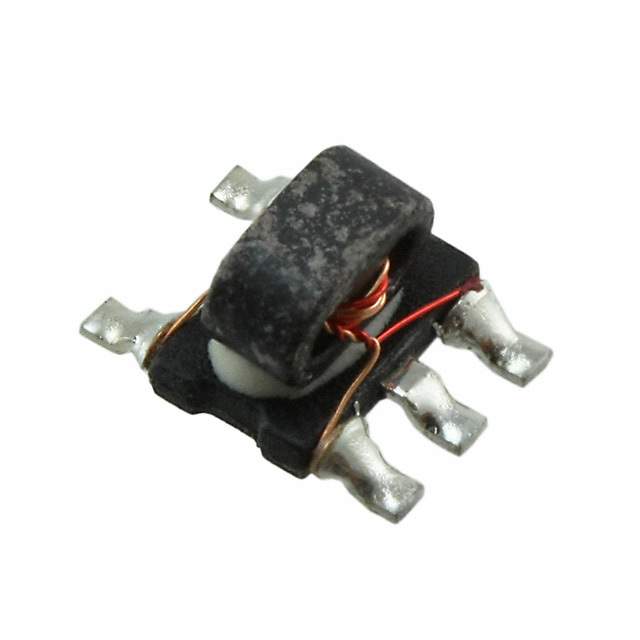

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Frequency Range 2.3MHz to 2.7GHz
Insertion Loss (Max) 0.2dB
Mounting Surface Mount
Win Source Part Number 013421-CX2156NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CX2156NL CAD Model

Description

Description

The CX2156NL is a high-performance and cost-effective transformer designed for demanding applications in electronic circuits. Engineered with precision, it ensures efficient signal transfer while maintaining high levels of noise immunity.

Features and Benefits

  • High efficiency and low insertion loss
  • Excellent electrical isolation between circuits
  • Durable construction for long-lasting performance
  • Compact design suitable for space-constrained applications

Applications

  • Switching power supplies
  • Networking equipment
  • Signal processing circuits
  • Telecommunication devices
