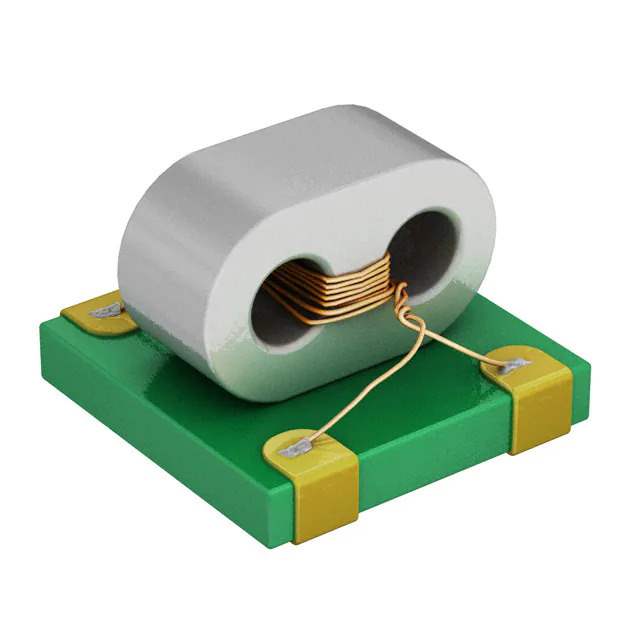

CX2072NLT Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Pulse
Package Tape & Reel
Product Status Obsolete
Frequency Range 10MHz ~ 1GHz
Phase Difference 6°
Insertion Loss (Max) 1.0dB
Return Loss (Min) 20dB
Package / Case 5-SMD Module
Mounting Type Surface Mount
Standard Package 2,200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 916197-CX2072NLT
Ultra Librarian 3D Model Ultra Librarian CX2072NLT CAD Model

Description

The CX2072NLT is an RF and Wireless Balun component designed for use in various electronic applications.

  • Mounting: Surface Mount Device
  • Package: 5-SMD Module
  • Frequency Range: 10MHz to 1GHz
  • Phase Difference: 6 degrees
  • Insertion Loss (Max): 1.0dB
  • Return Loss (Min): 20dB
  • Series: Pulse
  • Packaging: Tape and Reel
  • Standard Package: 2,200 Pieces
  • Status: Obsolete
