Same model may have multiple batches, images only for reference.

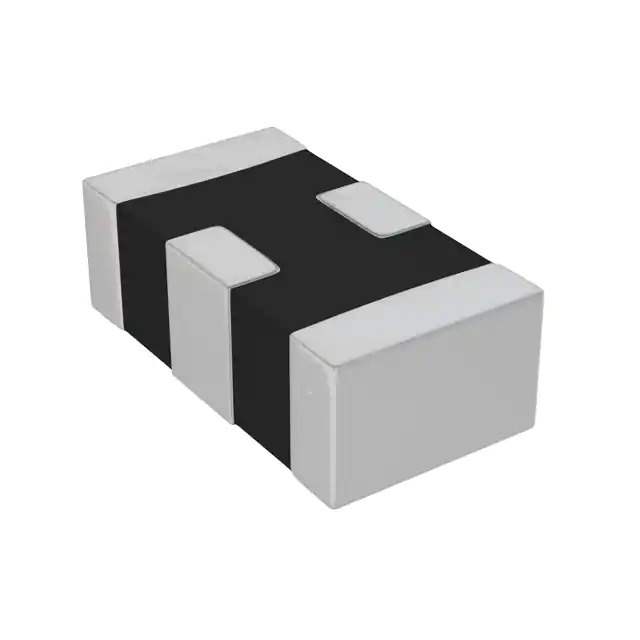

CX0603MRX7R0BB562 Real Image
Same model may have multiple batches, images only for reference.

CX0603MRX7R0BB562

Part No CX0603MRX7R0BB562
Manufacturer Pulse
Catalog Ceramic Capacitors
Description CAP CER 5600PF 100V X7R 0603 / 5600 pF ±20% 100V Ceramic Capacitor X7R 0603 (1608 Metric)
Datasheet
CX0603MRX7R0BB562 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Pulse
Series X2Y®
Package Tape & Reel
Product Status Active
Capacitance 5600 pF
Tolerance ±20%
Voltage - Rated 100V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL (X2Y)
Applications Bypass, Decoupling
Mounting Type Surface Mount, MLCC
Package / Case 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.033" W (1.60mm x 0.85mm)
Thickness (Max) 0.030" (0.75mm)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 867474-CX0603MRX7R0BB562
Ultra Librarian 3D Model Ultra Librarian CX0603MRX7R0BB562 CAD Model

Description

The 867474-CX0603MRX7R0BB562 is a ceramic capacitor from Pulse.

  • Series: X2Y®
  • Feature: Low equivalent series inductance (ESL)
  • Package: Tape and reel
  • Size: 0.063" L x 0.033" W
  • Thickness: 0.030"
  • Capacitance: 5600 pF
  • Voltage Rating: 100V
  • Temperature Coefficient: X7R
  • Operating Temperature Range: -55°C to 125°C
  • Standard Package: 4000 pcs
  • Product Status: Active
