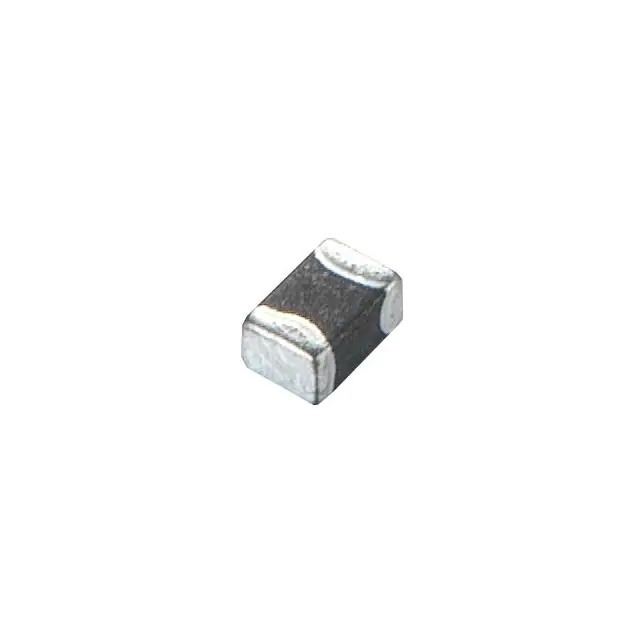

BBPY00321611500Y00

Part No BBPY00321611500Y00
Manufacturer Pulse
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 50 OHM 1206 1LN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Pulse Electronics
Series BBPY
Package Tape & Reel
Product Status Active
Filter Type -
Number of Lines 1
Impedance @ Frequency 50 Ohms @ 100 MHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 20mOhm
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Height (Max) 0.051" (1.30mm)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369207-BBPY00321611500Y00
Ultra Librarian 3D Model Ultra Librarian BBPY00321611500Y00 CAD Model

Description

The 1369207-BBPY00321611500Y00 is a ferrite bead and chip filter from Pulse Electronics.

  • Series: BBPY
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C ~ 125°C
  • Size / Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height (Max): 0.051" (1.30mm)
  • Impedance @ Frequency: 50 Ohms @ 100 MHz
  • Current Rating (Max): 4A
  • DC Resistance (DCR) (Max): 20mOhm
