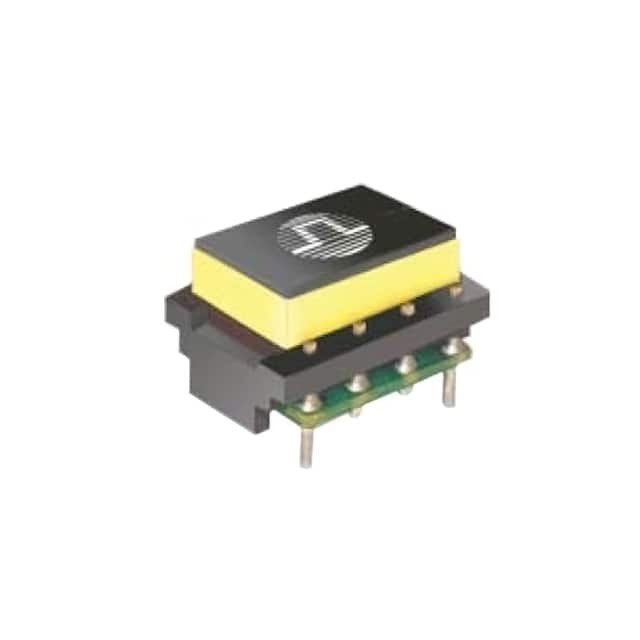

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Series SmartER Splitter™
Package Tray
Product Status Active
Transformer Type ADSL, VDSL
Mounting Type Through Hole
Size / Dimension 0.512" L x 0.681" W (13.00mm x 17.30mm)
Height - Seated (Max) 0.453" (11.50mm)
Standard Package 80 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 863325-B8846NL
Ultra Librarian 3D Model Ultra Librarian B8846NL CAD Model

Description

The 863325-B8846NL is a pulse transformer designed for use in ADSL and VDSL applications.

  • Mounting: Through-hole mount
  • Size: 0.512" L x 0.681" W (13.00mm x 17.30mm)
  • Inductance Value: Not specified
  • Maximum Seated Height: 0.453" (11.50mm)
  • Package: Tray
  • Standard Package: 80 pieces
  • ECCN: EAR99
  • REACH regulations: Unaffected
