Same model may have multiple batches, images only for reference.

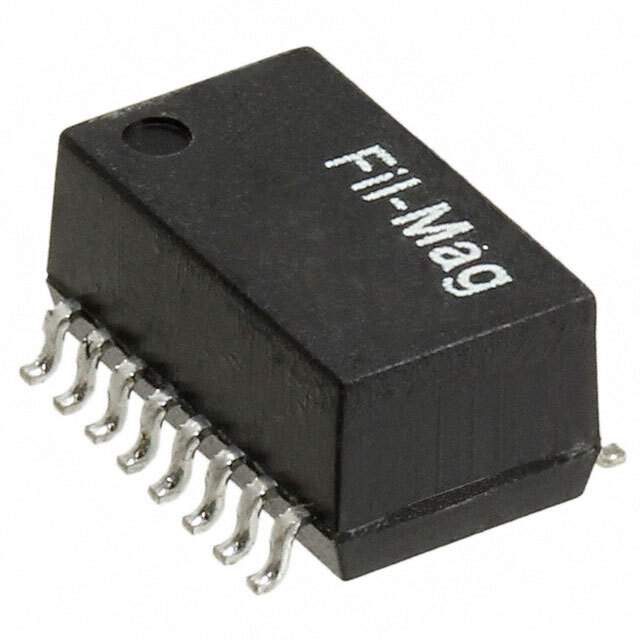

23Z467SM Real Image
Same model may have multiple batches, images only for reference.

23Z467SM

Part No 23Z467SM
Manufacturer Pulse
Catalog Pulse Transformers
Description LAN ISOLATION TRANSFORMER CATALOG | PULSE XFMR 1CT:2CT TX 1CT:1CT RX
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type LAN 10G Base-T
Inductance 140μH
Mounting Style SMD
Parts Dimension 0.450" L x 0.265" W (11.43mm x 6.73mm)
Height - Seated (Maximum) 0.215" (5.46mm)
Temperature Range - Operating 0°C ~ 70°C
Manufacturer Pack Quantity 40
MSL Level 3 (168 Hours)
Win Source Part Number 1123088-23Z467SM
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 23Z467SM CAD Model

Description

The Pulse Electronics Network 1123088-23Z467SM is a medium popularity transformer type electronic component that comes in tube packaging.

  • Mounting Style: SMD
  • Application: LAN 10G Base-T
  • Inductance: 140μH
  • Height: 0.215" (5.46mm)
