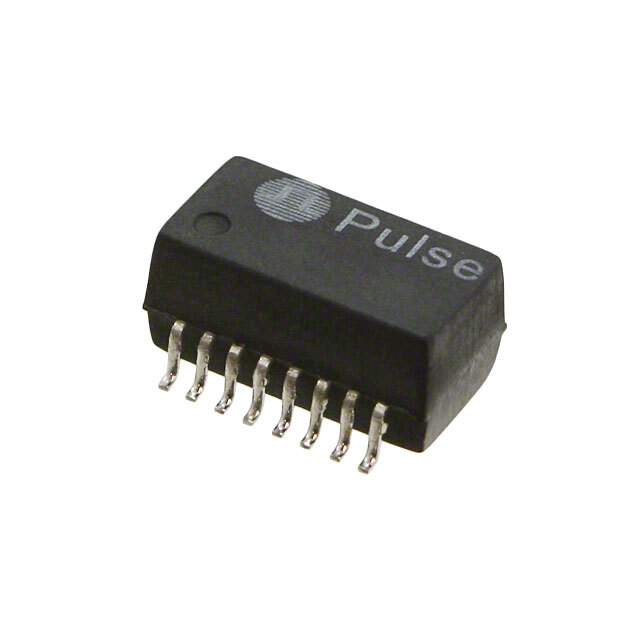

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer PulseR
Packaging Bulk
Transformer Type LAN 10/100 Base-T
Mounting Style SMD
Parts Dimension 0.500" L x 0.265" W (12.70mm x 6.73mm)
Height - Seated (Maximum) 0.235" (5.97mm)
Temperature Range - Operating -55°C ~ 125°C
Weight 0.06 oz (1.71 g)
Manufacturer Pack Quantity 80
MSL Level 3 (168 Hours)
Win Source Part Number 1120963-100B-1003X
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 100B-1003X CAD Model

Description

The PulseR transformer is a high-quality electronic component designed to provide excellent performance.

  • Packaging: Bulk
  • Mounting Style: SMD
  • Transformer Type: LAN 10/100 Base-T
  • Inductance: Not specified
  • Temperature Range: -55°C to 125°C
  • Manufacturer Homepage: www.pulseeng.com
  • Height Seated: 0.235 inches (5.97mm)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 80
  • MSL Level: 3 (168 hours)
  • Parts Dimension: 0.500 inches L x 0.265 inches W (12.70mm x 6.73mm)
