Same model may have multiple batches, images only for reference.

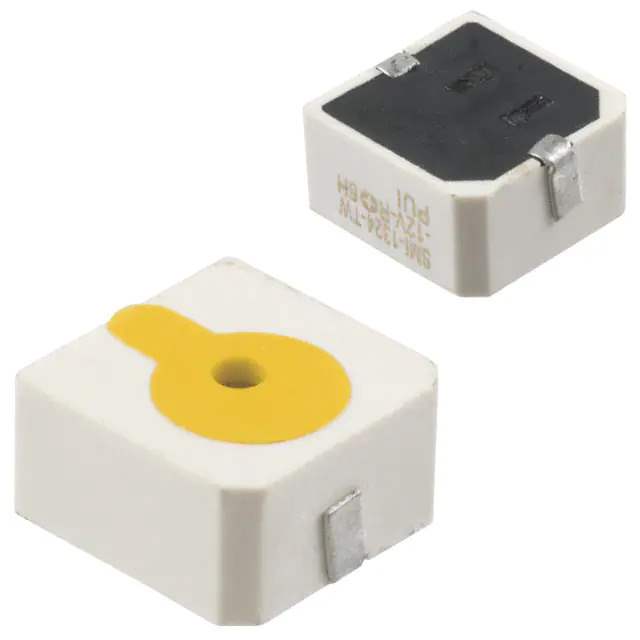

SMI-1324-TW-5V-2-R Real Image
Same model may have multiple batches, images only for reference.

SMI-1324-TW-5V-2-R

Part No SMI-1324-TW-5V-2-R
Manufacturer PUI Audio, Inc.
Catalog Alarms, Buzzers, and Sirens
Description BUZZER MAGNETIC 5V 12.8X12.8 SMD
Datasheet
SMI-1324-TW-5V-2-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Alarms, Buzzers, and Sirens
Mfr PUI Audio, Inc.
Series SMI
Package Tube
Product Status Active
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage - Rated 5 V
Voltage Range 4 ~ 7V
Frequency 2.4kHz
Technology Electromechanical/Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 88dB @ 5V, 10cm
Current - Supply 30mA
Port Location Top
Temperature Range - Operating -40°C ~ 85°C
Ratings Washable
Mounting Type Surface Mount
Termination Solder Pads
Size / Dimension 0.504" L x 0.504" W (12.80mm x 12.80mm)
Height - Seated (Max) 0.299" (7.60mm)
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
California Prop 65 Warning Information
Win Source Part Number 848532-SMI-1324-TW-5V-2-R
Ultra Librarian 3D Model Ultra Librarian SMI-1324-TW-5V-2-R CAD Model

Description

The 848532-SMI-1324-TW-5V-2-R is an audio product in the category of alarms, buzzers, and sirens. It belongs to the SMI series and has solder pads for termination.

  • Category: Alarms, buzzers, and sirens
  • Series: SMI
  • Termination Style: Solder pads
  • Size: 0.504" L x 0.504" W (12.80mm x 12.80mm)
  • Maximum Seated Height: 0.299" (7.60mm)
  • Washable: Yes
  • Rated Voltage: 5V
  • Technology: Electromechanical/magnetic
  • Frequency: 2.4kHz
  • Input Type: DC
  • Supply Current: 30mA
  • Operating Mode: Single tone
  • Voltage Range: 4 ~ 7V
  • Port Location: Top
  • Features: Indicator, internally driven driver circuitry
  • Temperature Range: -40°C ~ 85°C
  • Sound Pressure Level (SPL): 88dB @ 5V and 10cm
  • MSL: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS Code: 8531.80.9041
  • Manufacturer: PUI Audio, Inc.
  • Agency Approval: None specified
  • California Prop 65: Compliant
