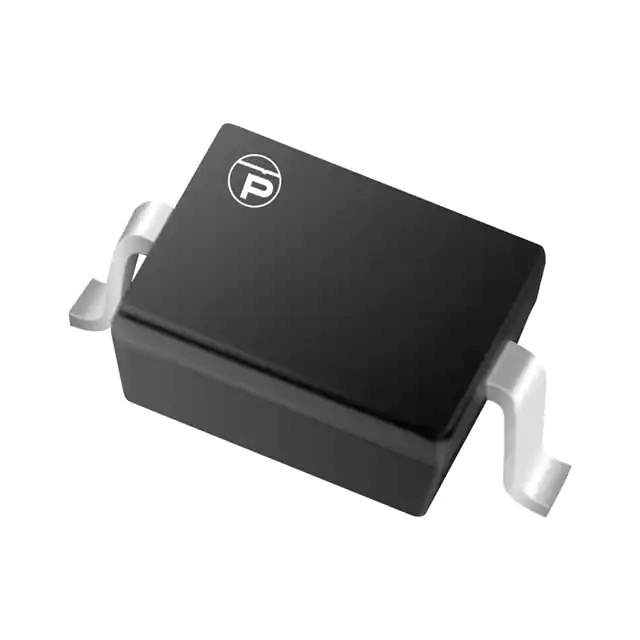

PSD05C-LF Real Image
Same model may have multiple batches, images only for reference.

PSD05C-LF

Part No PSD05C-LF
Manufacturer Protek Devices
Catalog TVS - Diodes
Description TVS DIODE 5VWM 9.8VC SOD323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Protek Devices
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 9.8V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 400W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 175pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Standard Package 10 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 893904-PSD05C-LF
Ultra Librarian 3D Model Ultra Librarian PSD05C-LF CAD Model

Description

The 893904-PSD05C-LF is a Zener type transient voltage suppressor (TVS) diode.

  • Category: circuit protection
  • Application: general-purpose applications
  • Packaging: tape and reel package
  • Reverse Standoff Voltage: 5V
  • Breakdown Voltage: 6V
  • Clamping Voltage: 9.8V @ the peak pulse current of 1A
  • Peak Pulse Power: 400W
  • Capacitance: 175pF @ a frequency of 1MHz
  • Peak Pulse Current: 1A @ a duration of 8/20μs
  • Mounting: surface mountable
