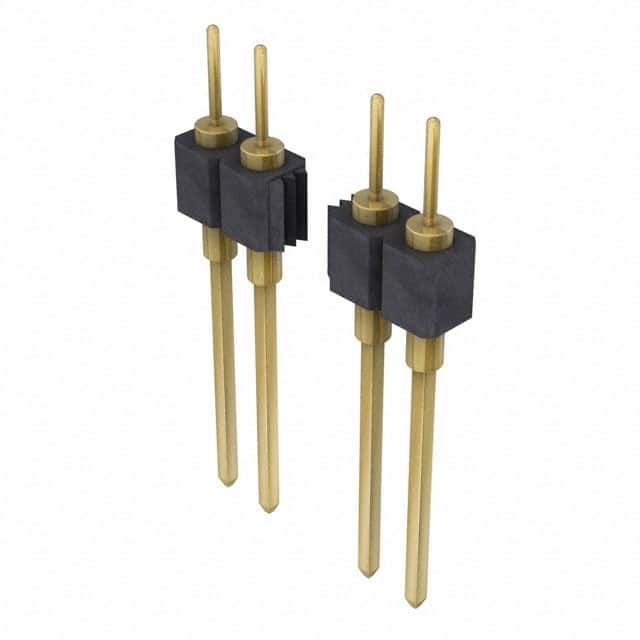

Same model may have multiple batches, images only for reference.

353-10-141-00-001101

Name: 353-10-141-00-001101
Brand: Preci-Dip
SKU: 1109172
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	353-10-141-00-001101
Manufacturer	Preci-Dip
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 41POS 2.54MM / Connector Header Through Hole 41 position 0.100" (2.54mm)
Datasheet	353-10-141-00-001101 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Preci-Dip
Series	353
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	41
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Wire Wrap
Fastening Type	Push-Pull
Contact Length - Mating	0.147" (3.73mm)
Contact Length - Post	0.510" (12.95mm)
Overall Contact Length	0.880" (22.36mm)
Insulation Height	0.116" (2.95mm)
Contact Shape	Circular, Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	150VDC
Contact Finish Thickness - Post	10.0µin (0.25µm)
Base Product Number	353-10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	70
Win Source Part Number	1109172-353-10-141-00-001101
Ultra Librarian 3D Model	Ultra Librarian 353-10-141-00-001101 CAD Model

Alternative Products

Description

The Preci-Dip 1109172-353-10-141-00-001101 is a board to board header connector with a wire wrap termination. The supply and demand status is balanced. This connector is suitable for use in electronic applications that require a board to board header connector.
