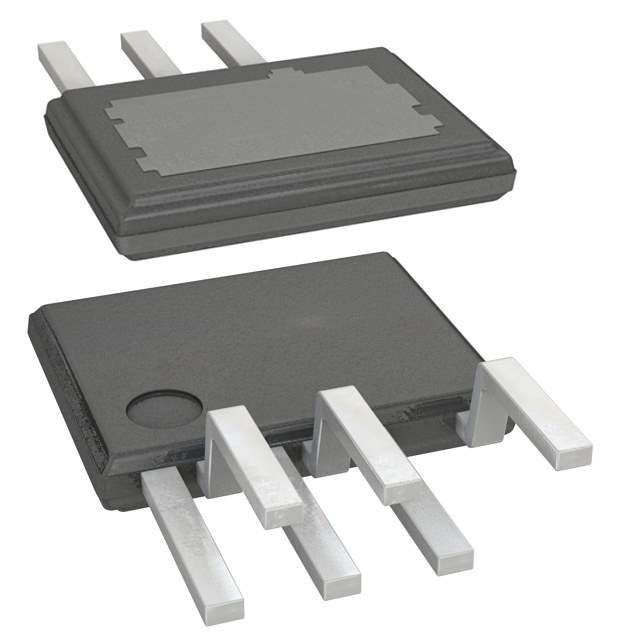

TOP256EG Real Image
Same model may have multiple batches, images only for reference.

TOP256EG

Part No TOP256EG
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWIT PROG OVP 7CESIP
Datasheet
TOP256EG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 78%
Frequency - Switching 66kHz, 132kHz
Power (Watts) 119W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Operating Temperature -40°C to 150°C (TJ)
Case / Package eSIP-7C
Mounting Through Hole
Win Source Part Number 053545-TOP256EG
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TOP256EG CAD Model

Description

The Power Integrations TOP256EG is an integrated circuit designed for flyback topology applications.

  • Power Output: 119W
  • Output Isolation: yes
  • Internal Switch: yes
  • Breakdown Voltage: 700V
  • Duty Cycle: 78%
  • Switching Frequency: 66kHz or 132kHz
  • Fault Protection: current limiting, over-temperature, and over-voltage protection
  • Package: eSIP-7C
  • Mounting: through-hole
  • Operating Temperature: -40°C to 150°C
  • Popularity: medium
