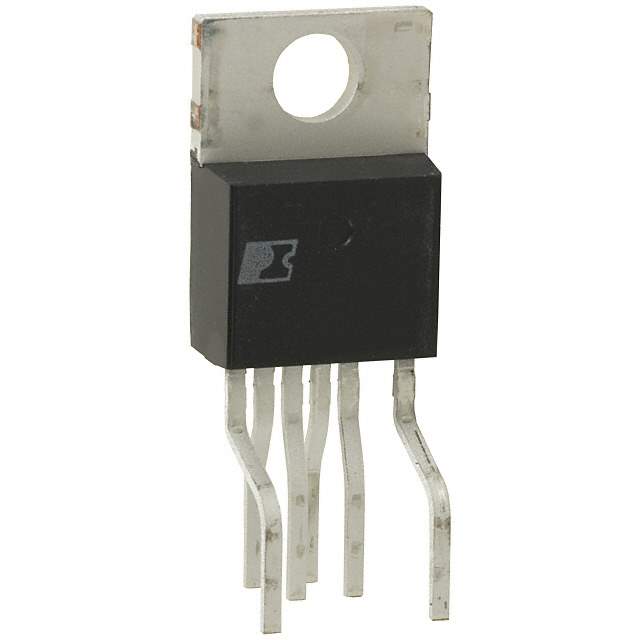

TOP242YN Real Image
Same model may have multiple batches, images only for reference.

TOP242YN

Part No TOP242YN
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWIT UVLO HV TO220
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 66.5%
Frequency - Switching 66kHz to 132kHz
Power (Watts) 22W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Features Frequency Control
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package TO-220-7C
Mounting Through Hole
Win Source Part Number 033367-TOP242YN
Family Name TOP242
Introduction Date August 20, 2001
ECCN EAR99
Country of Origin China
Estimated EOL Date 2019
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TOP242YN CAD Model

Description

The Power Integrations TOP242YN is a flyback topology integrated circuit.

  • Output Isolation: isolated
  • Internal Switch: internal switch
  • Voltage Breakdown: 700V
  • Duty Cycle: 66.5%
  • Fault Protection: current limiting, over temperature, and over voltage
  • Frequency Switching Range: 66kHz to 132kHz
  • Power Rating: 22W
  • Package: TO-220-7C package
  • Operating Temperature Range: -40°C to 150°C (TJ)
  • Supply and Demand Status: balanced
