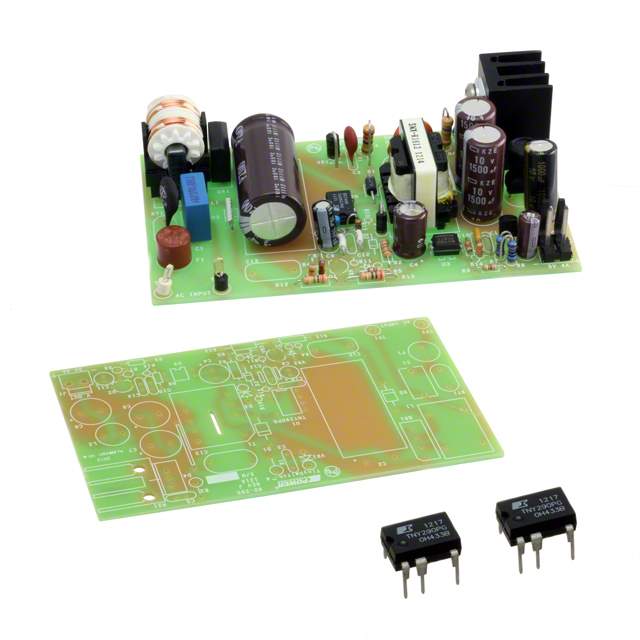

RDK-295 Real Image
Same model may have multiple batches, images only for reference.

RDK-295

Part No RDK-295
Manufacturer Power Integrations
Catalog Evaluation Boards - DC/DC & AC/DC (Off - Line)SMPS
Description KIT REF DESIGN TINYSWITCH-4  /  TNY290 series AC/DC, Primary Side 1, Isolated Outputs Evaluation Board
Datasheet
RDK-295 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr Power Integrations
Series TinySwitch®-4
Package Box
Main Purpose AC/DC, Primary Side
Outputs and Type 1, Isolated
Power - Output 20 W
Voltage - Output 5V
Current - Output 4A
Voltage - Input 90 ~ 295 VAC, 110 V ~ 420 V
Regulator Topology Flyback
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part TNY290
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 596-1530,RDK-295-ND
Standard Package 1
Win Source Part Number 1023007-RDK-295
Ultra Librarian 3D Model Ultra Librarian RDK-295 CAD Model

Description

The 1023007-RDK-295 is an evaluation board designed for DC/DC and AC/DC (Off-Line) SMPS. This evaluation board is manufactured by Power Integrations.

  • Series: TinySwitch-4
  • Voltage Output: 5V
  • Current Output: 4A
  • Voltage Input Range: 90 ~ 295 VAC and 110 V ~ 420 V
  • Main Purpose: AC/DC and primary side
  • Power Output: 20W
  • Supplied Contents: board(s)
  • Utilized IC/Part: TNY290
  • Board Type: fully populated
  • Output Isolation: one isolated output
  • Package: box
