Same model may have multiple batches, images only for reference.

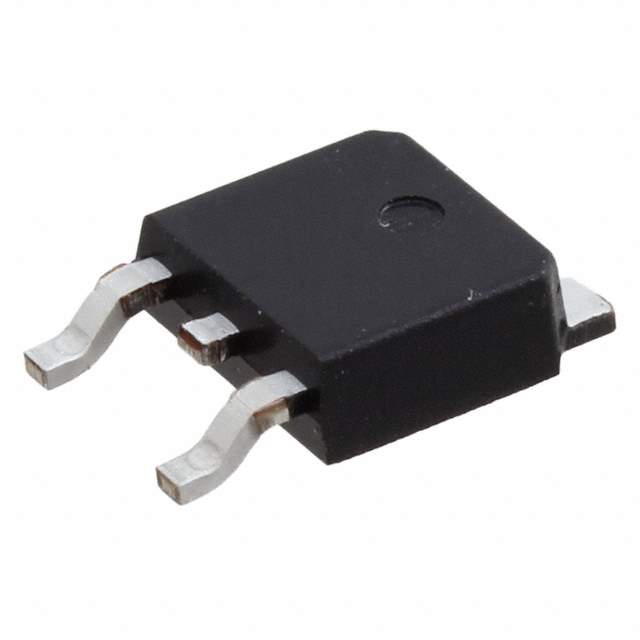

LQA10N200C Real Image
Same model may have multiple batches, images only for reference.

LQA10N200C

Part No LQA10N200C
Manufacturer Power Integrations
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 200V 5A TO252
Datasheet
LQA10N200C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Power Integrations
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) (per Diode) 5A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 13.9ns
Current - Reverse Leakage @ Vr 250μA @ 200V
Operating Temperature - Junction -55°C to 150°C
Mounting SMD (SMT)
Case / Package TO-252, (D-Pak)
Win Source Part Number 1000905-LQA10N200C
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LQA10N200C CAD Model

Description

The Power Integrations 1000905-LQA10N200C is a standard diode type electronic component that comes in reel-TR packaging and can be mounted using SMD (SMT).

  • Maximum DC Reverse Voltage: 200V
  • Forward Voltage: 1.1V @ 5A
  • Reverse Recovery Time: 13.9ns
  • Current Reverse Leakage: 250μA @ 200V
  • Diode Configuration: 1 Pair Common Cathode
  • Average Rectified Current: 5A per Diode
  • Operating Temperature Range: -55°C to 150°C
  • Category: Discrete Semiconductor Products
  • Case/Package: TO-252 (D-Pak)
  • Frequency: Fast Recovery 200mA (Io)
  • Popularity: Popular Choice
