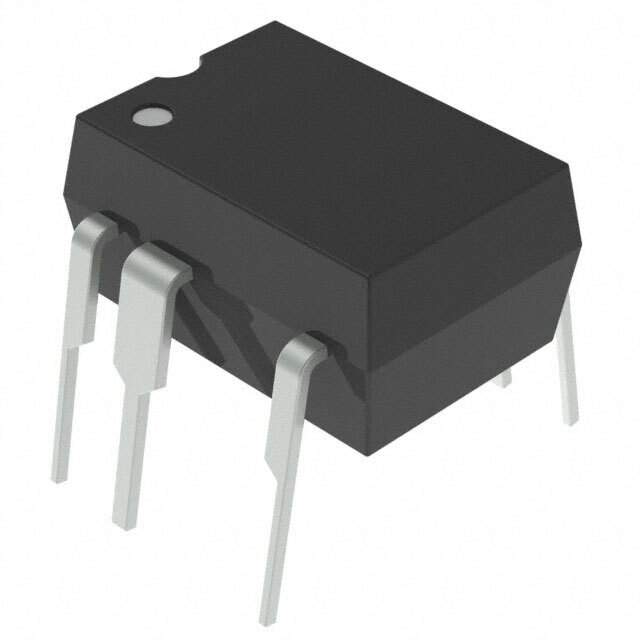

LNK3204P Real Image
Same model may have multiple batches, images only for reference.

LNK3204P

Part No LNK3204P
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWITCH MULT TOP 8DIP / Converter Offline Buck, Buck-Boost, Flyback Topology 66kHz 8-PDIP-C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - AC DC Converters, Offline Switchers
Mfr Power Integrations
Series LinkSwitch™-TN2
Package Tube
Output Isolation Non-Isolated
Internal Switch(s) Yes
Voltage - Breakdown 725V
Topology Buck, Buck-Boost, Flyback
Duty Cycle 69%
Frequency - Switching 66kHz
Fault Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit
Temperature Range - Operating -40°C ~ 125°C (TJ)
Package / Case 8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package 8-PDIP-C
Mounting Type Through Hole
Base Product Number LNK3204
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 596-1665,LNK3204P-ND
Standard Package 50
Win Source Part Number 959383-LNK3204P
Ultra Librarian 3D Model Ultra Librarian LNK3204P CAD Model

Description

The LNK3204P is a highly integrated off-line switcher IC from Power Integrations.

  • Series: LinkSwitch™-TN2
  • Isolation: Non-isolated output isolation
  • Features: Internal switch(s)
  • Breakdown Voltage: 725V
  • Topology: Buck, Buck-Boost, and Flyback
  • Duty Cycle: 69%
  • Switching Frequency: 66kHz
  • Fault Protection: Current limiting, over temperature, over voltage, and short circuit protection
  • Mounting: Through hole
  • Package: 8-DIP
  • Leads: 7
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • ECCN: EAR99
  • Application: AC-DC converters and offline switchers
