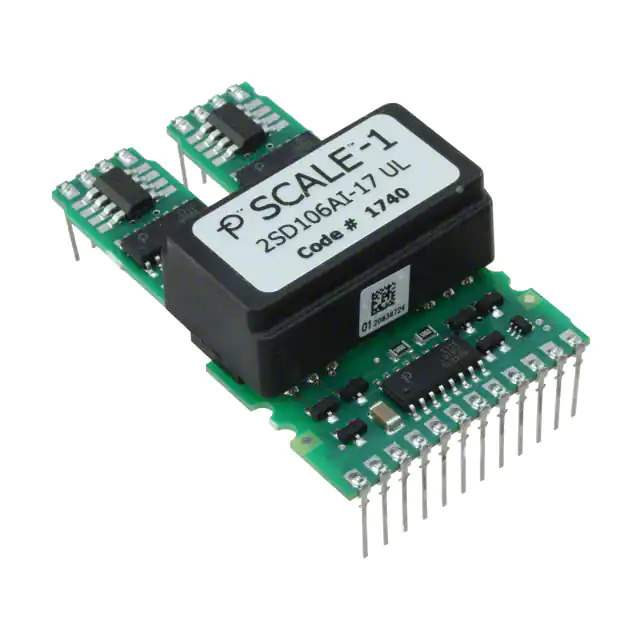

2SD106AI-17 UL Real Image
Same model may have multiple batches, images only for reference.

2SD106AI-17 UL

Part No 2SD106AI-17 UL
Manufacturer Power Integrations
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HALF-BRIDGE MODULE / Half-Bridge Gate Driver IC Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr Power Integrations
Series SCALE™-1
Package Tray
Product Status Not For New Designs
Programmable Not Verified
Driven Configuration Half-Bridge
Number of Drivers 2
Gate Type IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply 15V
Current - Peak Output (Source, Sink) 6A, 6A
Rise / Fall Time (Typ) 100ns, 80ns
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case Module
Supplier Device Package Module
Base Product Number 2SD106
Standard Package 35 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 906380-2SD106AI-17 UL
Ultra Librarian 3D Model Ultra Librarian 2SD106AI-17 UL CAD Model

Description

The SCALE™-1 Gate Driver Module is a power management integrated circuit designed for use in gate driver applications.

  • Configuration: Half-bridge driven
  • Number of Drivers: Two
  • Compatible Gate Types: IGBT, N-Channel, and P-Channel MOSFET
  • Peak Output Current (Source): 6A
  • Peak Output Current (Sink): 6A
  • Rise Time: 100ns
  • Fall Time: 80ns
  • Programmable: Yes
  • Voltage Supply: 15V
  • Installation: Surface Mount
  • Package: Tray
  • Standard Package: 35 pcs
  • Manufacturer: Power Integrations
  • Intended for New Designs: No
