5435747

Part No 5435747
Manufacturer Phoenix Contact
Catalog Terminal Blocks

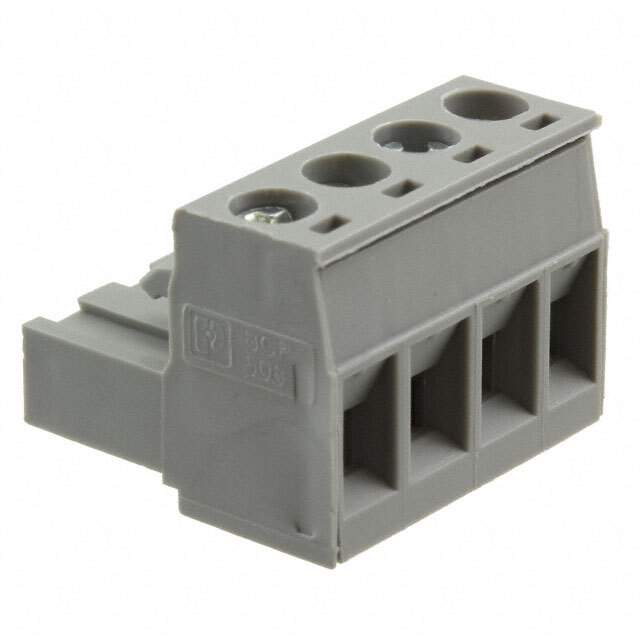

Description TERM BLOCK PLUG 4POS STR 5.08MM
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Phoenix Contact
Packaging Bulk
Status Active
Type Plug, Female Sockets
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 5.08mm
Plug Wire Entry 180°
Termination Style Screw
Mounting Free Hanging (In-Line)
Current Rating 12A
Voltage Rating 630V
Nominal current IN - UL 15A
Voltage - UL 300V
Wire Gauge or Range - AWG 12-30 AWG
Wire Gauge or Range - mm2 0.2-2.5mm2
Color Gray
Contact Mating Finish Tin
Features Retention Latches (Non-Wire Side)
Material Flammability Rating UL94 V-0
Screw Size M3
Wire Strip Length 7mm
Housing Material Polyamide (PA), Nylon
Insulation Height 0.591" (15.00mm)
Win Source Part Number 197022-5435747
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5435747 CAD Model

Description

Product 5435747

The 5435747 is engineered to meet the demands of modern electronic applications, offering outstanding precision and dependability. Its advanced technology supports efficient operations.

  • Applications/Projects:
    • Communication devices
    • Renewable energy systems
    • Home automation solutions
  • Features & Benefits:
    • Enhanced signal integrity
    • Improved thermal management
    • Low latency performance
  • Additional Details: This product is optimized for high-speed data processing and offers seamless integration into existing systems, facilitating upgrades and expansions without significant modifications.
