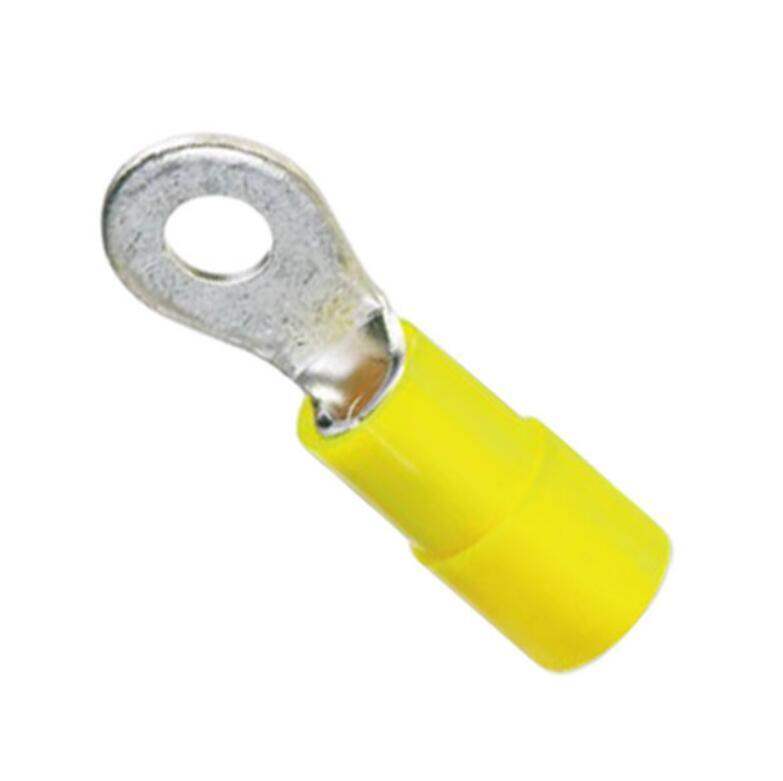

Same model may have multiple batches, images only for reference.
3240029Phoenix Contact
Same model may have multiple batches, images only for reference.

3240029

Part No 3240029
Manufacturer Phoenix Contact
Catalog Terminals
Description CONN RING CIRC 10-12AWG M6 CRIMP
Datasheet
3240029 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204382-3240029
Win Source Part Number Cross
Category Connectors, Interconnects Terminals Ring Connectors
Manufacturer Phoenix Contact
Series CLIPLINE
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size M6 Stud
Thickness 0.039" (0.99mm)
Width - Outer Edges 0.472" (12.00mm)
Length - Overall 1.287" (32.70mm)
Ultra Librarian 3D Model Ultra Librarian 3240029 CAD Model

Description

Product Features ：
● The sleeves are conically tapered to facilitate easy and correct insertion of the conductor
●The insulated ring cable lugs with plastic sleeve are hard-soldered and feature the 'EASY ENTRY' system
