Same model may have multiple batches, images only for reference.

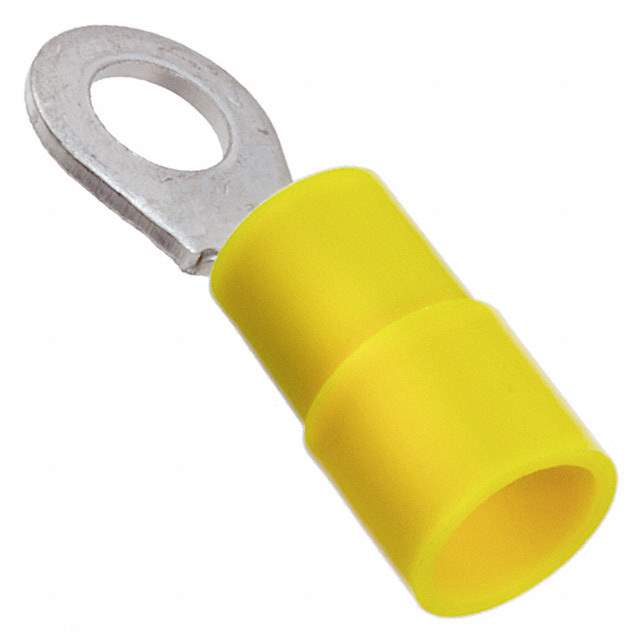

3240028 Real Image
Same model may have multiple batches, images only for reference.

3240028

Part No 3240028
Manufacturer Phoenix Contact
Catalog Terminals
Description CONN RING CIRC 10AWG M5 CRIMP / Ring Terminal Connector M5 Stud Circular 10 AWG Crimp
Datasheet
3240028 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer Phoenix Contact
Packaging Bulk
Terminal Type Circular
Stud/Tab Size M5 Stud
Thickness 0.039" (0.99mm)
Width - Outer Edges 0.374" (9.50mm)
Length - Overall 1.051" (26.70mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10 AWG
Insulation Insulated
Color Yellow
Contact Material Copper
Contact Finish Tin
Material - Insulation Plastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number C-RCI6/M5,3240028-ND,277-9647,C-RCI 6/M5
Standard Package 50
Win Source Part Number 1333805-3240028
Ultra Librarian 3D Model Ultra Librarian 3240028 CAD Model

Description

The Phoenix Contact 1333805-3240028 is a yellow ring connector with a crimp termination style.

  • Color: Yellow
  • Termination Style: Crimp
  • Wire Gauge: 10 AWG
  • Stud/Tab Size: M5
  • Contact Finish: Tin
  • Contact Material: Copper
  • Insulation Material: Plastic
  • Thickness: 0.039 inches
  • Width of Outer Edges: 0.374 inches
  • Overall Length: 1.051 inches
  • RoHS Compliant: Yes
  • Packaging: Bulk
  • Mounting: Free Hanging (In-Line)
