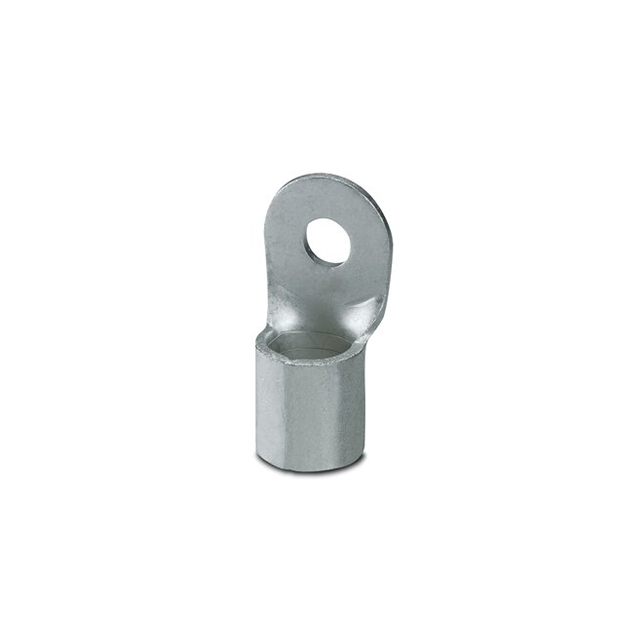

Same model may have multiple batches, images only for reference.
3240016 Phoenix Contact – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

3240016

Part No 3240016
Manufacturer Phoenix Contact
Catalog Terminals
Description CONN RING CIRC 16-20AWG M3 CRIMP
Datasheet
3240016 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Terminal Type Circular
Stud/Tab Size M3 Stud
Thickness 0.030" (0.76mm)
Width - Outer Edges 0.217" (5.50mm)
Length - Overall 0.689" (17.50mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Insulated
Color Red
Contact Material Copper
Contact Finish Tin
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1635529-3240016
Ultra Librarian 3D Model Ultra Librarian 3240016 CAD Model
