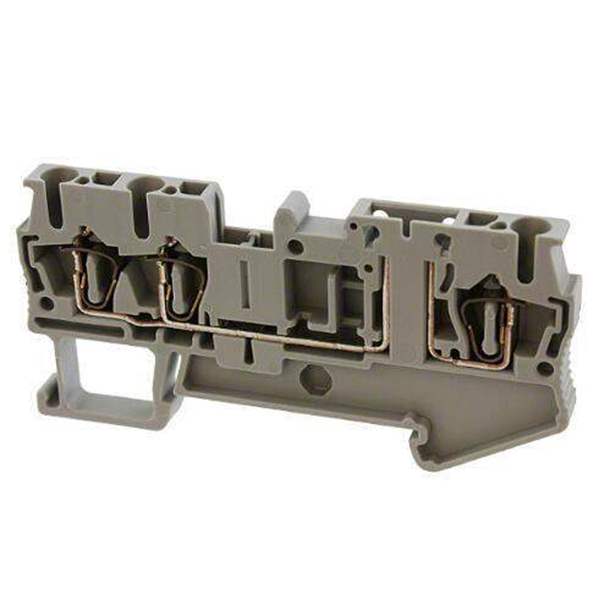

3038448Phoenix Contact
Same model may have multiple batches, images only for reference.

3038448

Part No 3038448
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description CONN TERM BLK DISCONN 12-28AWG
Datasheet
3038448 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Phoenix Contact
Category Connectors, Interconnects Terminal Blocks Din Rail, Channel
Package Bulk
Product Status Active
Type Disconnect
Terminal - Width 5.2mm
Termination Style Push In, Spring
Current - IEC 20 A
Voltage - IEC 400V
Current - UL 16 A
Voltage - UL 300V
Win Source Part Number WS1207677-3038448
Ultra Librarian 3D Model Ultra Librarian 3038448 CAD Model

Description

The ST...-TG spring cage disconnect terminal blocks are the same shape as the spring cage knife disconnect terminal blocks. Special features of the terminal blocks are their high current carrying capacity of 16 A and a constructional width of only 5 mm. The orange isolating connector is clearly visible and can also be inserted in the terminal block the other way around in order to indicate the switching status. A testing option for 2.3 mm ∅ test connectors is provided on both sides of the disconnect point.
