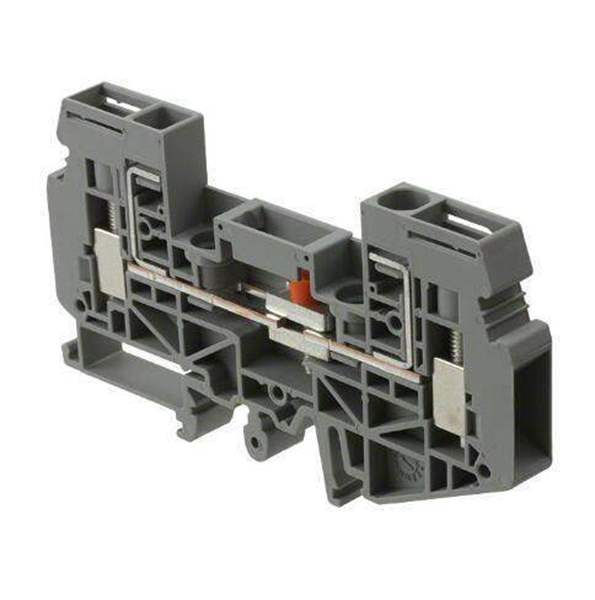

3026272 Phoenix Contact
Same model may have multiple batches, images only for reference.

3026272

Part No 3026272
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description CONN TERM BLK DISCONNECT 8-26AWG
Datasheet
3026272 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Phoenix Contact
Category Connectors, Interconnects Terminal Blocks Din Rail, Channel
Package Bulk
Product Status Active
Type Disconnect
Terminal - Width 8.2mm
Termination Style Screw
Voltage - IEC 400V
Current - UL 50 A
Voltage - UL 300V
Color Gray
Win Source Part Number WS1207605-3026272
Ultra Librarian 3D Model Ultra Librarian 3026272 CAD Model

Description

Test disconnect terminal block, Connection method: Screw connection, Cross section:   0.5 mm²- 10 mm², Width: 8.2 mm, Mounting type: NS 35/7.5, NS 35/15, NS 32, Color: gray
