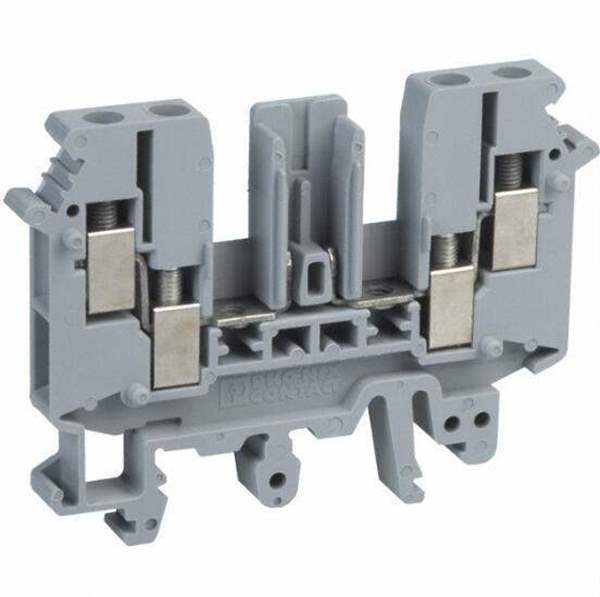

2777014Phoenix Contact
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Phoenix Contact
Category Connectors, Interconnects Terminal Blocks Din Rail, Channel
Package Package
Product Status Active
Type Disconnect
Terminal - Width 6.2mm
Termination Style Screw
Current - IEC 16 A
Voltage - IEC 400V
Win Source Part Number WS1207369-2777014
Ultra Librarian 3D Model Ultra Librarian 2777014 CAD Model

Description

Disconnect terminal block, Current and voltage are determined by the plug used., nom. voltage: 400 V, nominal current: 16 A, connection method: Screw connection, Rated cross section: 4 mm2 , cross section: 0.2 mm2  - 6 mm2 , mounting: NS 35/7,5, NS 35/15, NS 32, color: gray
