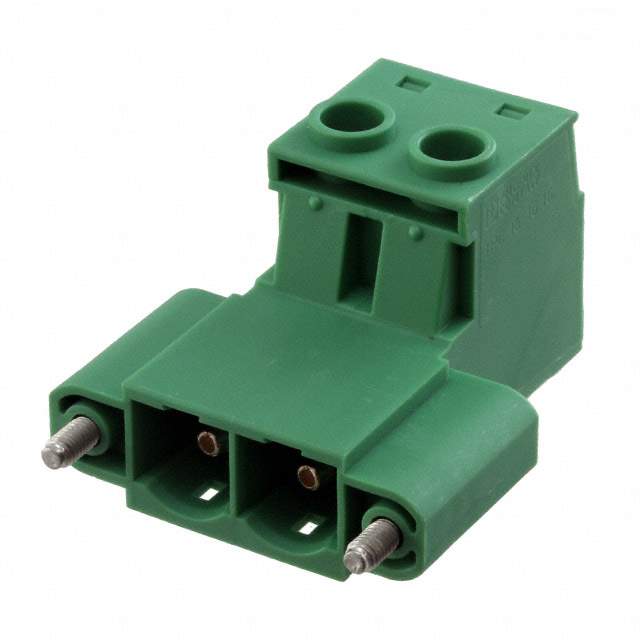

Same model may have multiple batches, images only for reference.

1969454

Get a Quote

Part No	1969454
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 2POS STR 10.16MM / 2 Position Terminal Block Plug, Male Pins 0.400" (10.16mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Phoenix Contact
Series	COMBICON IPC
Package	Bulk
Type	Plug, Male Pins
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.400" (10.16mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)
Current - IEC	76A
Voltage - IEC	1 kV
Current - UL	55 A
Voltage - UL	600 V
Wire Gauge or Range - AWG	6-20 AWG
Wire Gauge or Range - mm2	0.75-16mm²
Color	Green
Contact Mating Finish	Silver
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Screw Size	M4
Torque - Screw	1.7-1.8 Nm (15-15.9 Lb-In)
Wire Strip Length	12mm
Housing Material	Polyamide (PA) , Nylon
Insulation Height	1.094" (27.80mm)
Standard Package	50
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1348640-1969454
Ultra Librarian 3D Model	Ultra Librarian 1969454 CAD Model

Description

The COMBICON IPC Plug Male Pins from Phoenix Contact is a reliable connector that is ideal for use in terminal blocks, headers, plugs and sockets.

Positions: 2
Positions per Level: 2
Pitch: 0.400" (10.16mm)
Termination Style: Screw-Rising Cage Clamp
Current Rating: 76A
Voltage Rating (IEC): 1 kV
Voltage Rating (UL): 600V @ 55 A
Wire Gauge: 6-20 AWG, 0.75-16mm² (mm2)
Housing Material: Polyamide (PA) and Nylon
Mating Flange: Yes
Color: Green
Contact Mating Finish: Silver
Torque Screw: 1.7-1.8 Nm (15-15.9 Lb-In)
Screw Size: M4
Mounting Type: Free Hanging (In-Line)
Insulation Height: 1.094" (27.80mm)
