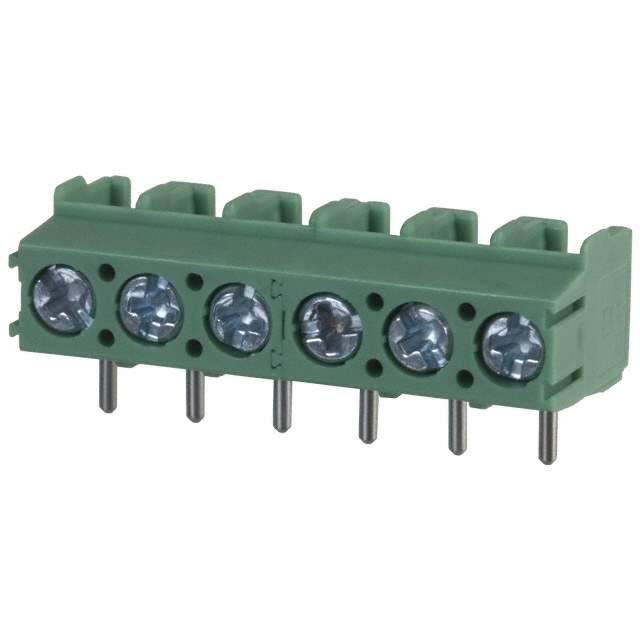

Same model may have multiple batches, images only for reference.

1935352

Name: 1935352
Brand: Phoenix Contact
SKU: 1192570
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1935352
Manufacturer	Phoenix Contact
Catalog	Terminal Blocks
Description	Conn Terminal Block 6 POS 5mm Solder RA Thru-Hole 17.5A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Approvals	CB, UL, VDE
Color	Green
Contact Material	Copper
Contact Plating	Tin
Current	18 A
Current Rating	17.5 A
Depth	11.4 mm
Flammability Rating	UL94 V-0
Gender	Male
Height	9 mm
Housing Color	Green
Housing Material	Polyamide
Insulation Material	Nylon
Lead Free	Lead Free
Length	30 mm
Material	Polyamide
Max Current Rating	16 A
Max Supply Voltage	250 V
Mount	Through Hole
Number of Contacts	6
Number of Levels	1
Number of Pins	6
Number of Poles	6
Number of Positions	6
Number of Positions Per Level	6
Number of Rows	1
Orientation	Right Angle
Pitch	5 mm
RoHS	Compliant
Stripping Length	5 mm
Termination	Screw
Voltage	300 V
Voltage Rating	250 V
Voltage Rating (DC)	320 V
Weight	5.800001 g
Width	9 mm
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Win Source Part Number	1192570-1935352
Categories	Terminal Blocks
Manufacturer	Phoenix Contact
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 1935352 CAD Model

Description

The Phoenix Contact 1192570-1935352 is a terminal block with 6 positions, 1 level, and a pitch of 5 mm.

Positions: 6
Levels: 1
Pitch: 5 mm
Current Rating: 17.5 A
Voltage Rating: 250 V
Popularity: Medium
Supply and Demand: Limited
Lead-Free: Yes
RoHS Compliant: Yes
