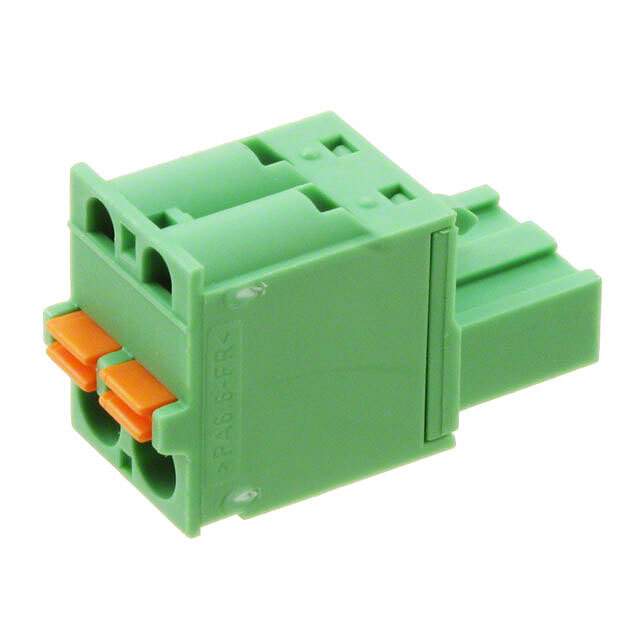

1873058 Real Image
Same model may have multiple batches, images only for reference.

1873058

Part No 1873058
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description The figure shows a 10-position version of the product | TERM BLOCK PLUG 2POS STR 5.08MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Phoenix Contact
Packaging Bulk
Type Plug, Female Sockets
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.200" (5.08mm)
Plug Wire Entry 180°
Termination Style Screwless - Leg Spring, Push-In Spring
Mounting Style Free Hanging (In-Line)
Current - IEC 12A
Voltage - IEC 630V
Current - UL 10A
Voltage - UL 300V
Wire Gauge or Range - AWG 12-26 AWG
Wire Gauge or Range - mm2 0.2-2.5mm2
Color Green
Contact Mating Finish Tin
Features Retention Latches (Non-Wire Side)
Material Flammability Rating UL94 V-0
Wire Strip Length 10mm
Dielectric Material Polyamide (PA), Nylon
Insulation Height 0.591" (15.00mm)
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 721347-1873058
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1873058 CAD Model

Description

The Phoenix Contact 721347-1873058 is a 2-position female socket plug connector with screwless leg spring, push-in spring termination style.

  • Positions: 2
  • Termination Style: Screwless Leg Spring, Push-In Spring
  • Pitch: 0.200 inches (5.08mm)
  • Wire Gauge: 12-26 AWG or 0.2-2.5mm2
  • Current Rating (IEC): 12A
  • Voltage Rating (IEC): 630V
  • Current Rating (UL): 10A
  • Voltage Rating (UL): 300V
  • Features: Retention Latches (Non-Wire Side)
  • Housing Material: Polyamide (PA) Nylon
  • Flammability Rating: UL94 V-0
  • Insulation Height: 0.591 inches (15.00mm)
  • Mounting: Free Hanging
