Same model may have multiple batches, images only for reference.

1851261

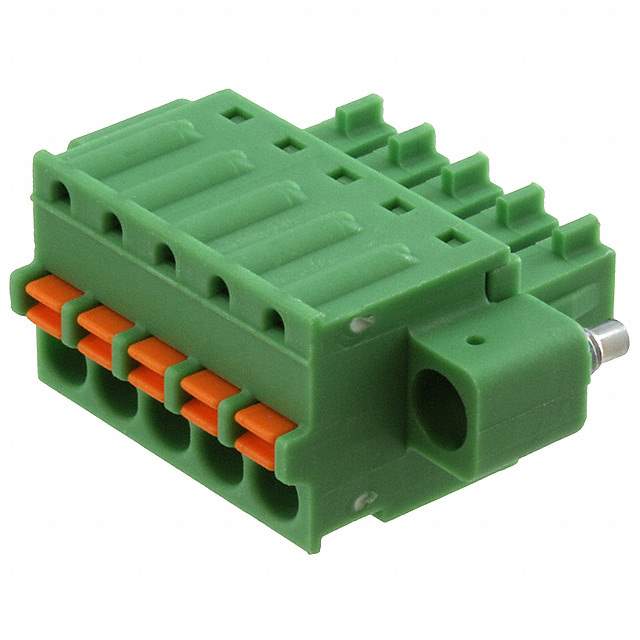

Name: 1851261
Brand: Phoenix Contact
SKU: 1332239
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1851261
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 5POS STR 3.81MM / 5 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line)
Datasheet	1851261 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	5
Positions Per Level	5
Number of Levels	1
Pitch	0.150" (3.81mm)
Plug Wire Entry	180°
Termination Style	Screwless - Leg Spring, Push-In Spring
Mounting	Free Hanging (In-Line)
Current - IEC	8A
Voltage - IEC	320 V
Current - UL	8 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	16-28 AWG
Wire Gauge or Range - mm2	0.14-1.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Wire Strip Length	9mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.488" (12.40mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	1851261-ND,277-8919,FK-MCP1,5/5-STF-3,81,FK-MCP 1,5/ 5-STF-3,81
Standard Package	50
Win Source Part Number	1332239-1851261
Ultra Librarian 3D Model	Ultra Librarian 1851261 CAD Model

Description

The 1332239-1851261 is a plug female socket connector that is designed for terminal blocks, manufactured by Phoenix Contact.

Positions per Level: 5
Pitch: 0.150 inches
Termination Style: Screwless leg spring push-in spring
Current (IEC): 8A
Current (UL): 8A
Voltage Rating (IEC): 320V
Voltage Rating (UL): 300V
Wire Gauge Range: 16-28 AWG or 0.14-1.5mm2
Housing Material: Polyamide (PA), Nylon
Material Flammability Rating: UL94 V-0
Feature: Mating flange
Contact Mating Finish: Tin
REACH: Unaffected
ROHS3 Compliant: Yes
Standard Package: 50
Mounting Style: Free hanging (in-line)
