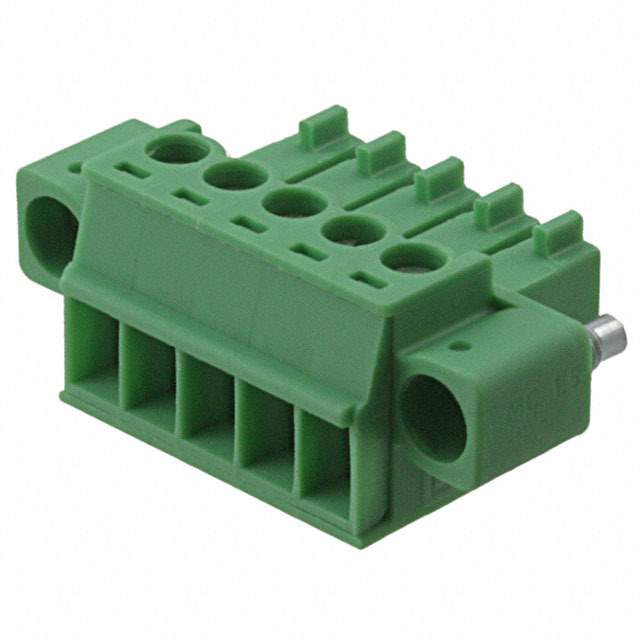

Same model may have multiple batches, images only for reference.

1847084

Name: 1847084
Brand: Phoenix Contact
SKU: 1332257
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1847084
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 5POS STR 3.5MM / 5 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Datasheet	1847084 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	5
Positions Per Level	5
Number of Levels	1
Pitch	0.138" (3.50mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting	Free Hanging (In-Line)
Current - IEC	8A
Voltage - IEC	320 V
Current - UL	8 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	14-30 AWG
Wire Gauge or Range - mm2	0.14-1.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Screw Size	M2
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Wire Strip Length	7mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.437" (11.10mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	1847084-ND,277-6249,MC 1,5/ 5-STF-3,5,MC1,5/5-STF-3,5
Standard Package	250
Win Source Part Number	1332257-1847084
Ultra Librarian 3D Model	Ultra Librarian 1847084 CAD Model

Description

The Phoenix Contact 1332257-1847084 is a 5-position, plug female socket terminal block that is designed for free hanging (in-line) applications.

Positions: 5
Pitch: 3.50mm
Wire Gauges: 14-30 AWG
Housing Material: polyamide (PA) or nylon
Color: green
Packaging: bulk
Standard Package: 250
Wire Termination: screw-rising cage clamp
Voltage: 300V
Current: 8A
