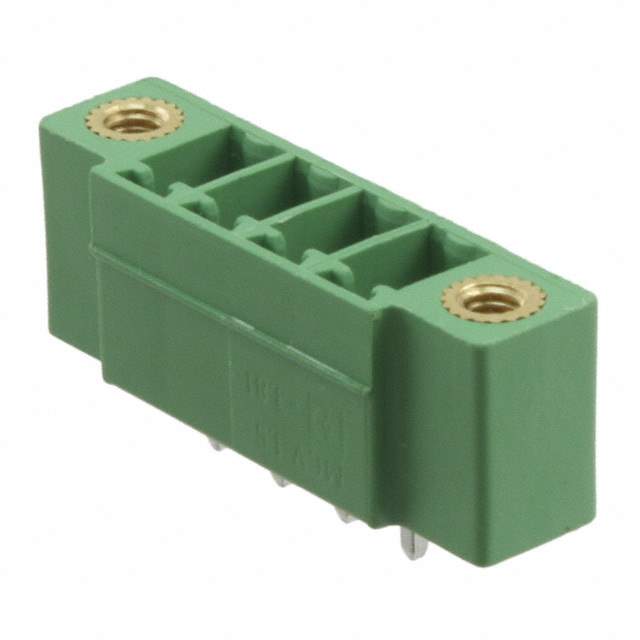

Same model may have multiple batches, images only for reference.

1830619

Name: 1830619
Brand: Phoenix Contact
SKU: 1196171
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1830619
Manufacturer	Phoenix Contact
Catalog	Terminal Blocks
Description	Wire-To-Board Connector, Flange, Through Hole, Header, 4, 3.81 Mm Rohs Compliant: Yes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Approvals	CB, CSA, VDE
Color	Green
Connector Type	Plug
Contact Material	Tin
Contact Plating	Tin
Current	8 A
Current Rating	8 A
Depth	7.25 mm
Flammability Rating	UL94 V-0
Gender	Male
Height	12.7 mm
Housing Color	Green
Housing Material	Polybutylene
Lead Free	Lead Free
Length	25.63 mm
Material	PBT
Max Current Rating	8 A
Mount	Through Hole
Number of Contacts	4
Number of Levels	1
Number of Poles	4
Number of Positions	4
Number of Positions Per Level	4
Number of Rows	1
Orientation	Straight
Pitch	3.81 mm
RoHS	Compliant
Termination	Solder
Voltage	300 V
Voltage Rating	160 V
Weight	113.398093 g
Width	25.63 mm
Win Source Part Number	1196171-1830619
Categories	Terminal Blocks
Manufacturer	Phoenix Contact
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 1830619 CAD Model

Description

The Phoenix Contact 1196171-1830619 is a 4-position, 1-level terminal block with a plug connector manufactured by Phoenix Contact.

Positions: 4
Levels: 1
Terminal Block Type: Plug Connector
Voltage Rating: 160V
Current Rating: 8A
Housing Material: Polybutylene
Housing Color: Green
Contact Material: Tin
Approvals: CB, CSA, and VDE
Width: 25.63mm
Height: 12.7mm
Depth: 7.25mm
Flammability Rating: UL94 V-0
Lead-Free: Yes
Mounting: Through-Hole Mount
