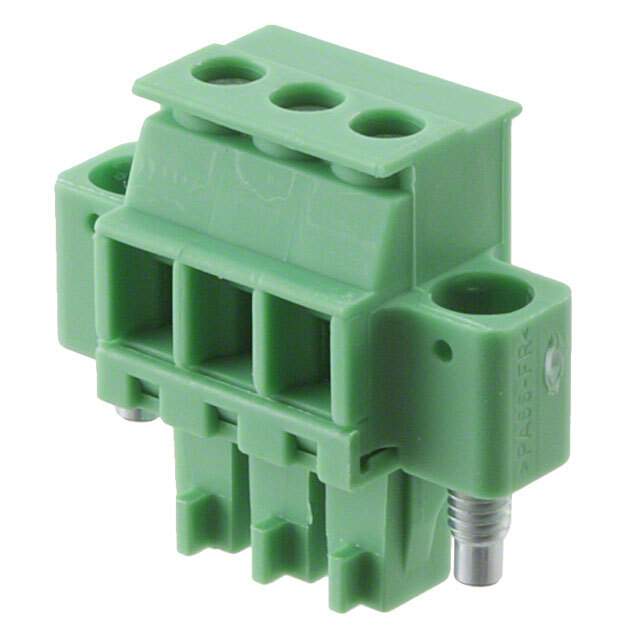

1828359 Real Image1 1828359 Real Image2
Same model may have multiple batches, images only for reference.
1828359 Real Image1 1828359 Real Image2
1828359 Real Image1 1828359 Real Image2
Same model may have multiple batches, images only for reference.

1828359

Part No 1828359
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK PLUG 3POS 3.81MM / 3 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 90° Free Hanging (In-Line)
Datasheet
1828359 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON MCVR
Package Bulk
Type Plug, Female Sockets
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation -
Plug Wire Entry 90°
Termination Style Screw - Rising Cage Clamp
Mounting Type Free Hanging (In-Line)
Current - IEC 8A
Voltage - IEC 320 V
Current - UL 8 A
Voltage - UL 300 V
Wire Gauge or Range - AWG 14-30 AWG
Wire Gauge or Range - mm2 0.14-1.5mm²
Color Green
Temperature Range - Operating -
Contact Mating Finish Tin
Features Mating Flange
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size M2
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Wire Strip Length 7mm
Contact Material -
Housing Material Polyamide (PA), Nylon
Contact Tail Length -
Insulation Height 0.752" (19.10mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Standard Package 50 pcs
Win Source Part Number 1380587-1828359
Ultra Librarian 3D Model Ultra Librarian 1828359 CAD Model

Description

The Phoenix Contact Terminal Block is a versatile and reliable connector for various applications.

  • Series: COMBICON MCVR
  • Type: Plug with female sockets
  • Positions per Level: 3
  • Wire Gauges: 14 to 30 AWG
  • Termination: Screw-type with rising cage clamp
  • Current Rating (IEC): 8A
  • Voltage Rating (IEC): 320V
  • Material: Polyamide (PA) and nylon
  • Package: Bulk
  • Mating Flange: Yes
