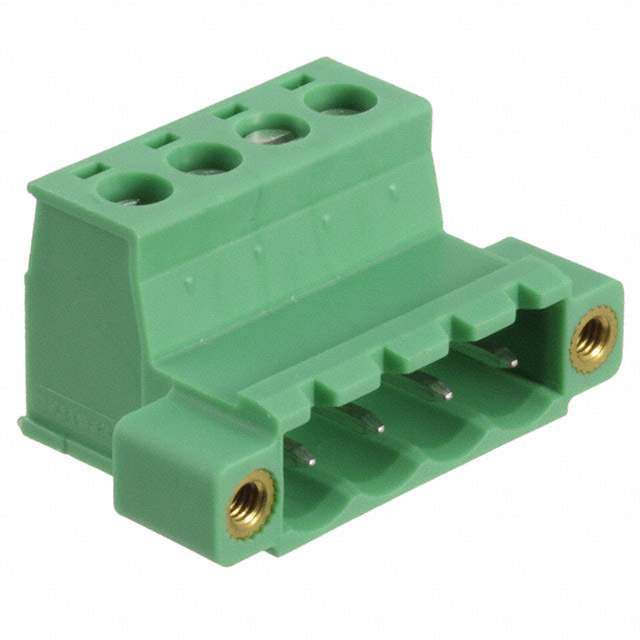

Same model may have multiple batches, images only for reference.

1825527

Name: 1825527
Brand: Phoenix Contact
SKU: 1332281
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1825527
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 4POS STR 5.08MM / 4 Position Terminal Block Plug, Male Pins 0.200" (5.08mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Male Pins
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.200" (5.08mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting	Free Hanging (In-Line)
Current - IEC	12A
Voltage - IEC	630 V
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-30 AWG
Wire Gauge or Range - mm2	0.2-2.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Screw Size	M3
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length	7mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.591" (15.00mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	IC2,5/4-STGF-5,08,1825527-ND,IC 2,5/ 4-STGF-5,08,277-5824
Standard Package	50
Win Source Part Number	1332281-1825527
Ultra Librarian 3D Model	Ultra Librarian 1825527 CAD Model

Description

The Phoenix Contact 1332281-1825527 terminal block plug is a male header with 4 positions per level and 4 levels.

Positions Per Level: 4
Number of Levels: 4
Pitch: 0.200 inches (5.08mm)
Termination Style: Screw-Type Rising Cage Clamp
Wire Entry Angle: 180 degrees
Wire Gauge: 12-30 AWG
Housing Material: Polyamide (PA) Nylon
Material Flammability Rating: UL94 V-0
Current Rating (IEC): 12A
Voltage Rating (IEC): 630V
Current Rating (UL): 10A
Voltage Rating (UL): 300V
Torque Screw: 0.5-0.6 Nm (4.4-5.3 Lb-In)
Screw Size: M3
Packaging: Bulk
Standard Package: 50
