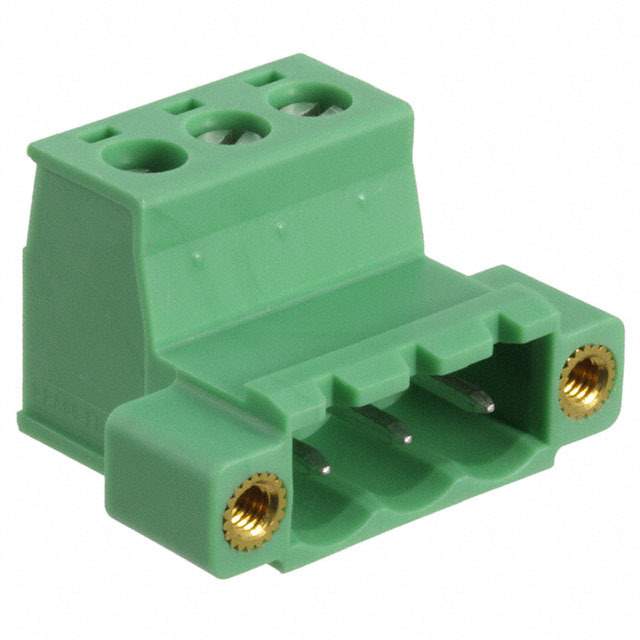

The 1332236-1825514 is a plug, male pins type electronic component with 3 positions per level and 1 level, manufactured by Phoenix Contact.

• Pitch: 0.200" (5.08mm)
• Plug Wire Entry: 180°
• Termination Style: Screw - rising cage clamp
• Current - IEC: 12A
• Voltage - IEC: 630 V
• Current - UL: 10 A
• Voltage - UL: 300 V
• Wire Gauge or Range - AWG: 12-30 AWG
• Wire Gauge or Range - mm2: 0.2-2.5mm2
• Color: Green
• Feature: Mating flange
• Housing Material: Polyamide (PA), nylon
• Material Flammability Rating: UL94 V-0
• Standard Package: 50
• Mounting: Free hanging (in-line)
• Torque - Screw: 0.5-0.6 Nm (4.4-5.3 Lb-In)
• Screw Size: M3
• Insulation Height: 0.591" (15.00mm)
• Wire Strip Length: 7mm
• MSL Level: 1 (Unlimited)
• HTSUS: 8536.69.8000
• RoHS Compliant: Yes
