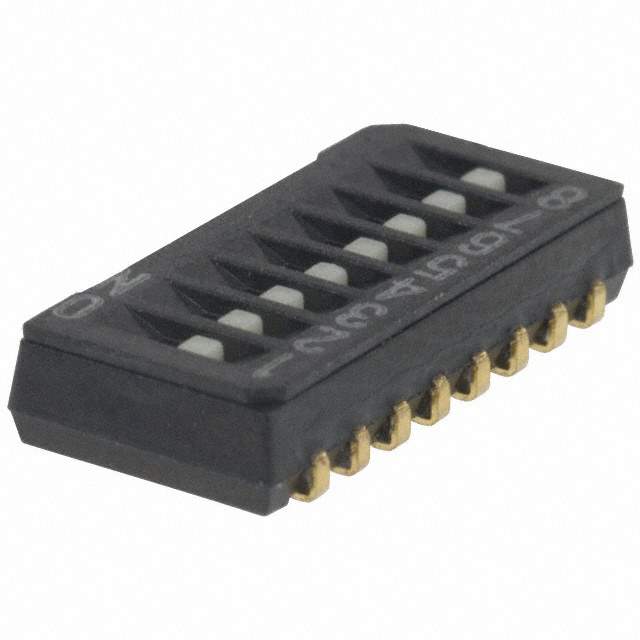

CHS-08TA

Part No CHS-08TA
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 6V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit SPST
Number of Positions 8
Current Rating 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.098" (2.50mm)
Mounting SMD (SMT)
Termination Style J Lead
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyphenylene Sulfide (PPS)
Length 0.461" (11.71mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 2,000 Cycles
Win Source Part Number 050298-CHS-08TA
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CHS-08TA CAD Model

Description

Product Overview

The CHS-08TA is a high-capacity component that meets the demands of next-generation electronic technologies. Renowned for its efficiency and robust functionality, it's a vital part of many complex systems, ensuring reliable performance.

Key Features and Benefits

  • Scalable design compatible with a range of electronic infrastructures.
  • Reliable performance in high-temperature environments.
  • Facilitates rapid prototyping and deployment of electronic devices.
  • High tolerances contribute to the durability and longevity of projects.

Applications

  • Data processing units
  • Smart home devices
  • Wearable technology
  • Automotive electronics

With its excellent performance and adaptability, the CHS-08TA ensures that electronic solutions remain efficient and reliable, even in challenging conditions.
