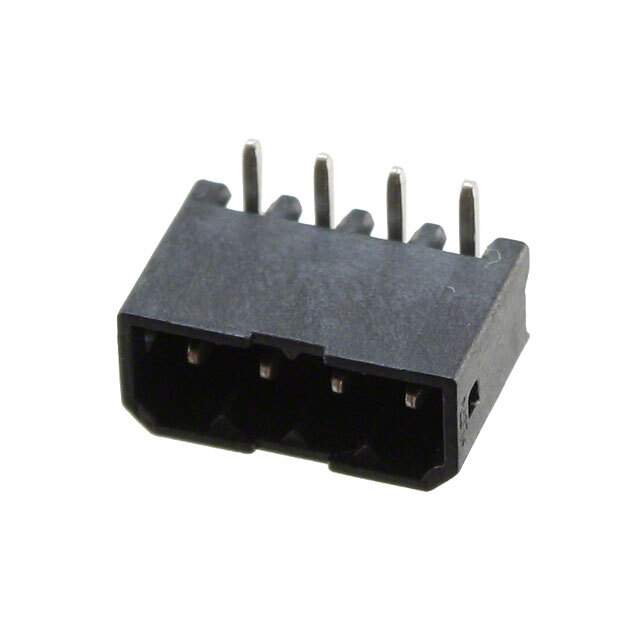

Same model may have multiple batches, images only for reference.

1778641

Name: 1778641
Brand: Phoenix Contact
SKU: 1332294
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1778641
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 4POS 90DEG 2.5MM / 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) 90°, Right Angle Through Hole
Datasheet	1778641 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Reel - TR
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.098" (2.50mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting	Through Hole
Current - IEC	6A
Voltage - IEC	160 V
Color	Black
Contact Mating Finish	Tin
Features	Pick and Place Cap
Material Flammability Rating	UL94 V-0
Housing Material	Liquid Crystal Polymer (LCP)
Contact Tail Length	0.083" (2.10mm)
Insulation Height	0.197" (5.00mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	PTSM0,5/4-HH-2,5-THRR32,277-2310-1,277-2310-2
Standard Package	500
Win Source Part Number	1332294-1778641
Ultra Librarian 3D Model	Ultra Librarian 1778641 CAD Model

Description

The Phoenix Contact 1332294-1778641 connector is a header with male pins and is shrouded on 4 sides.

Positions: 4
Positions Per Level: 4
Number of Levels: 1
Pitch: 0.098" (2.50mm)
Header Orientation: 90° Right Angle
Termination Style: Solder
Current-IEC: 6A
Voltage-IEC: 160V
Housing Material: Liquid Crystal Polymer (LCP)
Material Flammability Rating: UL94 V-0
Feature: Pick and Place Cap
Contact Mating Finish: Tin
Standard Package: 500
ECCN: EAR99
RoHS Status: RoHS Compliant
