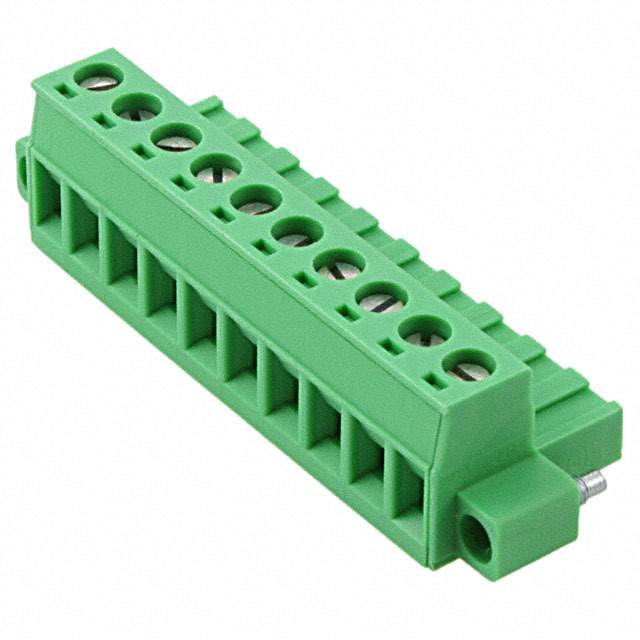

The 1332225-1778069 is a plug female socket connector manufactured by Phoenix Contact.

• Positions: 10
• Positions per Level: 10
• Levels: 1
• Pitch: 0.200 inches (5.08mm)
• Plug Wire Entry: 180 degrees
• Termination Style: Screw-rising cage clamp
• Current Rating: 12A
• Voltage Rating (IEC): 630V
• Voltage Rating (UL): 300V
• Current Rating (UL): 15A
• Wire Gauge or Range: 12-30 AWG
• Wire Gauge or Range: 0.2-2.5mm2
• Color: Green
• Contact Mating Finish: Tin
• Feature: Mating flange
• Housing Material: Polyamide (PA) and nylon
• Material Flammability Rating: UL94 V-0
• Standard Package: 50
• Mounting Style: Free-hanging (in-line)
• Screw Size: M3
• Insulation Height: 0.591 inches (15.00mm)
• Wire Strip Length: 7mm
• ROHS3 Compliant: Yes
