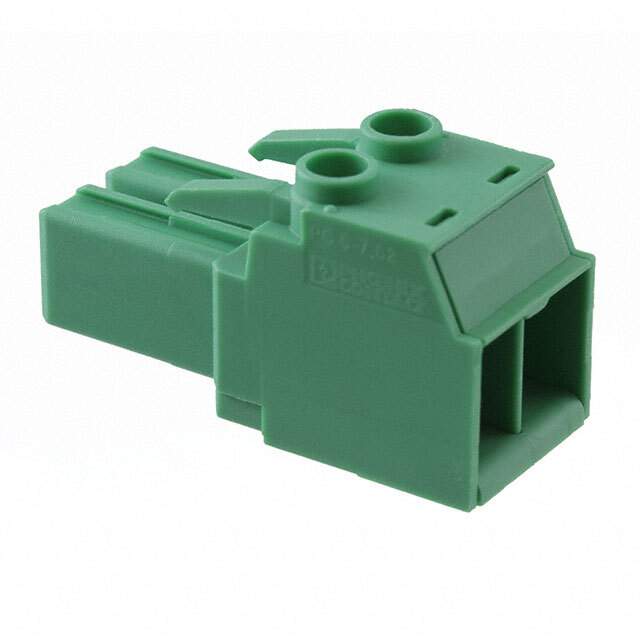

Same model may have multiple batches, images only for reference.

1777723

Name: 1777723
Brand: Phoenix Contact
SKU: 1332166
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1777723
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 2POS STR 7.62MM / 2 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
Datasheet	1777723 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.300" (7.62mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting	Free Hanging (In-Line)
Current - IEC	41A
Voltage - IEC	1 kV
Current - UL	41 A
Voltage - UL	600 V
Wire Gauge or Range - AWG	8-24 AWG
Wire Gauge or Range - mm2	0.2-10mm²
Color	Green
Contact Mating Finish	Tin
Features	Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Screw Size	M3
Torque - Screw	0.5-0.8 Nm (4.4-7.1 Lb-In)
Wire Strip Length	10mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.776" (19.70mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	277-2434,PC52ST1762,1777723-ND,PC5/2-ST1-7,62
Standard Package	50
Win Source Part Number	1332166-1777723
Ultra Librarian 3D Model	Ultra Librarian 1777723 CAD Model

Description

This Phoenix Contact terminal block is a plug type with 2 positions per level, 2 levels, and a pitch of 0.300 inches (7.62 mm).

Positions per Level: 2
Levels: 2
Pitch: 0.300 inches (7.62 mm)
Current Rating: 41 A
Voltage Rating (IEC): 1 kV
Voltage Rating (UL): 600 V
Wire Gauge: 8-24 AWG
Wire Size: 0.2-10mm²
