Same model may have multiple batches, images only for reference.

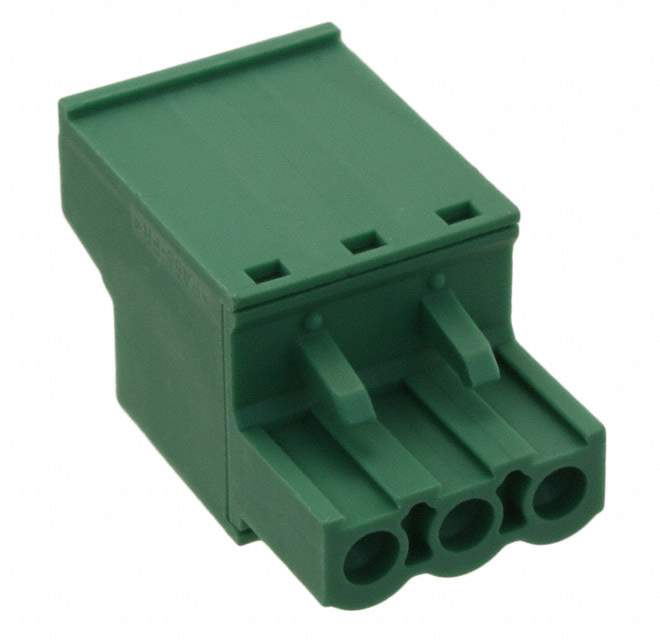

1777293 Real Image
Same model may have multiple batches, images only for reference.

1777293

Part No 1777293
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK PLUG 3POS STR 5.08MM / 3 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Plug, Female Sockets
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.200" (5.08mm)
Plug Wire Entry 180°
Termination Style Screw - Pressure Clip
Mounting Free Hanging (In-Line)
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 15 A
Voltage - UL 300 V
Wire Gauge or Range - AWG 12-30 AWG
Wire Gauge or Range - mm2 0.2-2.5mm2
Color Green
Contact Mating Finish Tin
Features Retention Latches (Non-Wire Side)
Material Flammability Rating UL94 V-0
Screw Size M2.5
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length 10mm
Housing Material Polyamide (PA), Nylon
Insulation Height 0.591" (15.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 1777293-NDR,277-1935,1777293-ND,FRONT-MSTB2,5/3-ST-5,08,FRONTMSTB2,5/3ST5,08
Standard Package 100
Win Source Part Number 1332231-1777293
Ultra Librarian 3D Model Ultra Librarian 1777293 CAD Model

Description

The Phoenix Contact Terminal Block Header is a plug connector that is designed for female sockets.

  • Positions: 3
  • Pitch: 0.200 inches (5.08mm)
  • Termination Style: Screw-pressure clip
  • Current Rating: 12A
  • Voltage Rating (IEC): 630V
  • Voltage Rating (UL): 300V
  • Wire Gauge Range: 12-30 AWG
  • Feature: Retention latches on the non-wire side
  • Housing Material: Polyamide (PA) and nylon
  • Material Flammability Rating: UL94 V-0
  • Torque: 0.5-0.6 Nm (4.4-5.3 Lb-In)
  • Screw Size: M2.5
  • Insulation Height: 0.591 inches (15.00mm)
  • Wire Strip Length: 10mm
