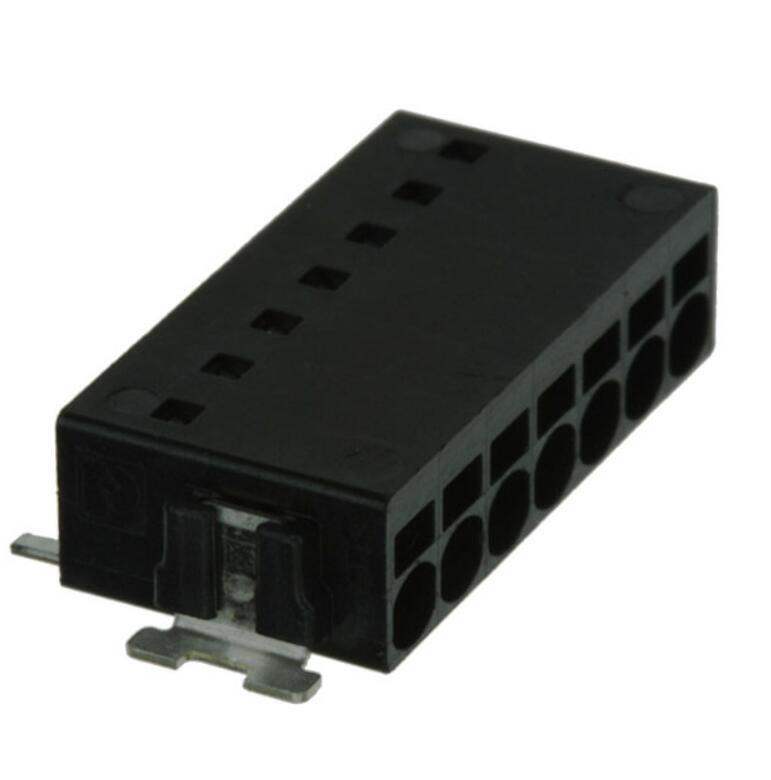

1771075Phoenix Contact
Same model may have multiple batches, images only for reference.

1771075

Part No 1771075
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK 7POS SIDE ENT 2.5MM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204421-1771075
Win Source Part Number Cross
Manufacturer Phoenix Contact
Category Connectors, Interconnects Terminal Blocks Wire to Board
Series COMBICON PTSM
Product Status Active
Number of Levels 1
Pitch 0.098" (2.50mm)
Mating Orientation Horizontal with Board
Mounting Type Surface Mount
Wire Termination Screwless - Spring Cage, Tension Clamp
Features Solder Retention
Color Black
Ultra Librarian 3D Model Ultra Librarian 1771075 CAD Model

Description

PCB terminal block, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm2 , number of potentials: 7, number of rows: 1, number of positions per row: 7, product range: PTSM 0,5/..-H-SMD, pitch: 2.5 mm, connection method: Push-in spring connection, mounting: SMD soldering, conductor/PCB connection direction: 0 °, color: black, Pin layout: Linear pinning, number of solder pins per potential: 1, type of packaging: 44 mm wide tape
