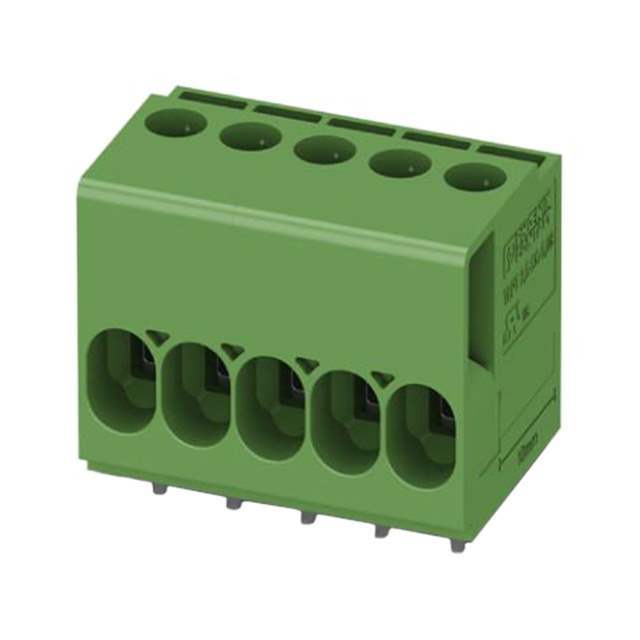

1017494 Phoenix Contact
Same model may have multiple batches, images only for reference.

1017494

Part No 1017494
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK 5P SIDE ENT 5.08MM PCB
Datasheet
1017494 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Phoenix Contact
Category Connectors, Interconnects > Terminal Blocks > Wire to Board
Packaging Bulk
Part Status Active
Number of Levels 1
Positions Per Level 5
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Current 24 A
Voltage 400 V
Ultra Librarian 3D Model Ultra Librarian 1017494 CAD Model

Description

Advantages

ā— Easy to adapt, thanks to their identical size and the same pinning for Push-in spring connections as for screw connections

ā— Well-known connection principle allows worldwide use

ā— Low temperature rise, thanks to maximum contact force
