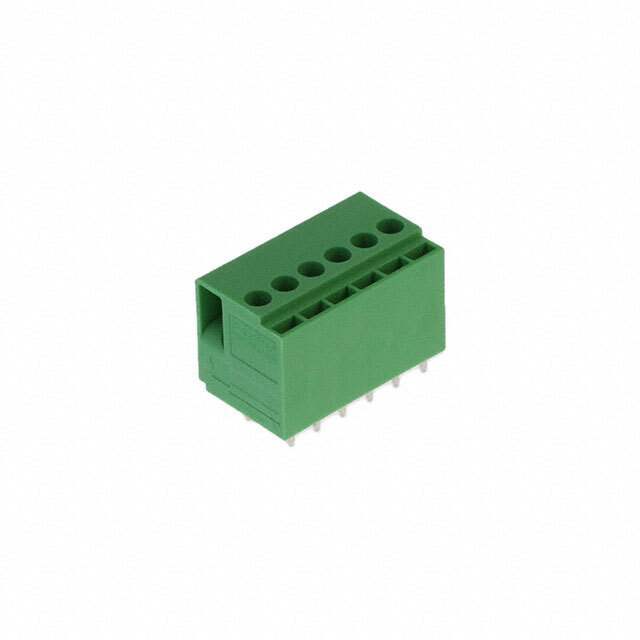

1017495 Phoenix Contact
Same model may have multiple batches, images only for reference.

1017495

Part No 1017495
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK 6P SIDE ENT 5.08MM PCB
Datasheet
1017495 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Phoenix Contact
Category Connectors, Interconnects > Terminal Blocks > Wire to Board
Packaging Bulk
Part Status Active
Number of Levels 1
Positions Per Level 6
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Current 24 A
Voltage 400 V
Ultra Librarian 3D Model Ultra Librarian 1017495 CAD Model

Description

Printed circuit board terminal, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm2 , number of potentials: 6, number of rows: 1, number of positions per row: 6, product range: TDPT 2,5/..-SC, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard
