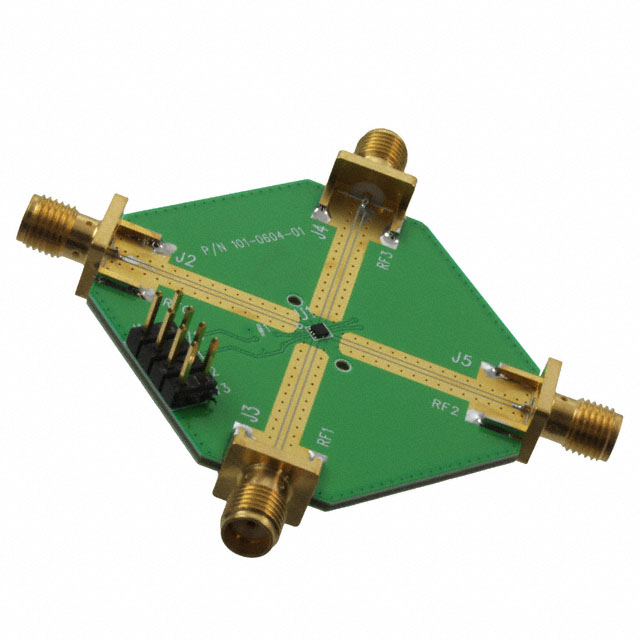

EK42430-01 Peregrine Semiconductor
Same model may have multiple batches, images only for reference.

EK42430-01

Part No EK42430-01
Manufacturer Peregrine Semiconductor
Catalog RF Evaluation and Development Kits, Boards
Description BOARD EVAL SP3T SW FOR PE42430
Datasheet
EK42430-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - RF Evaluation and Development Kits, Boards
Mfr Peregrine Semiconductor
Series UltraCMOS®, HaRP™
Package Box
Product Status Active
Type Switch, SP3T
Frequency 100MHz ~ 3GHz
For Use With/Related Products PE42430
Supplied Contents Board(s)
Base Product Number EK42430
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 503726-EK42430-01
Ultra Librarian 3D Model Ultra Librarian EK42430-01 CAD Model

Description

The 503726-EK42430-01 is a development board kit designed for RF evaluation and development.

  • Series: UltraCMOS® and HaRP™
  • Manufacturer: Peregrine Semiconductor
  • Switch Type: SP3T
  • Frequency Range: 100MHz to 3GHz
  • Package: Single board
  • Compatibility: Compatible with the PE42430 product
  • Status: Active product
  • Applications: Wireless communication systems, RF testing, and signal routing
  • Features: High-frequency capabilities and reliable performance
  • Tool: Essential tool for engineers and designers in the RF industry
