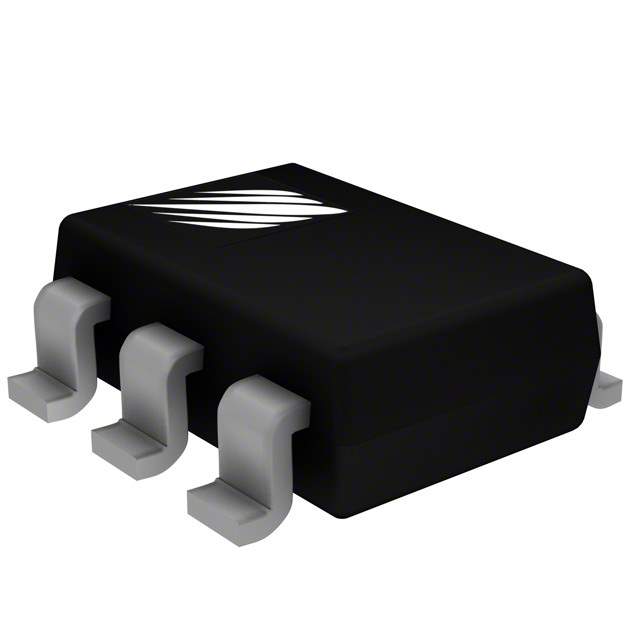

4242-52 Real Image1 4242-52 Real Image2
Same model may have multiple batches, images only for reference.
4242-52 Real Image1 4242-52 Real Image2
4242-52 Real Image1 4242-52 Real Image2
Same model may have multiple batches, images only for reference.

4242-52

Part No 4242-52
Manufacturer Peregrine Semiconductor
Catalog RF Switches
Description IC RF SWITCH SPDT 3GHZ SC70-6 / RF Switch IC General Purpose SPDT 3 GHz 50Ohm SC-70-6
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless>RF Switches
Mfr Peregrine Semiconductor
Series UltraCMOS®
Package Tape & Reel
Product Status Obsolete
RF Type General Purpose
Topology Reflective
Circuit SPDT
Frequency Range 10MHz ~ 3GHz
Isolation 23dB
Insertion Loss 0.9dB
Test Frequency 2GHz
P1dB 27dBm
IIP3 45dBm
Features Single/Dual Line Control
Impedance 50Ohm
Voltage - Supply 2.7V ~ 3.3V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 6-TSSOP, SC-88, SOT-363
Supplier Device Package SC-70-6
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,000 pcs
Win Source Part Number 1380813-4242-52
Ultra Librarian 3D Model Ultra Librarian 4242-52 CAD Model

Description

The RF Switch with Win Source Part Number 1380813-4242-52 is a versatile component designed for RF and wireless applications.

  • Series: UltraCMOS
  • Control Line: Single/Dual
  • Packaging: Tape & Reel (TR)
  • Impedance: 50Ohm
  • Test Frequency: 2GHz
  • Frequency: 10MHz ~ 3GHz
  • Insertion Loss: 0.9dB
  • Isolation: 23dB
  • Circuit: SPDT
  • Topology: Reflective
  • IIP3: 45dBm
  • P1dB: 27dBm
  • Application: General Purpose RF
  • Voltage - Supply: 2.7V ~ 3.3V
  • Mounting Type: Surface Mount
  • Package / Case: 6-TSSOP, SC-88, SOT-363
  • Supplier Device Package: SC-70-6
  • Operating Temperature: -40°C ~ 85°C
  • Lifecycle Status: Obsolete
  • Standard Package: 3,000
