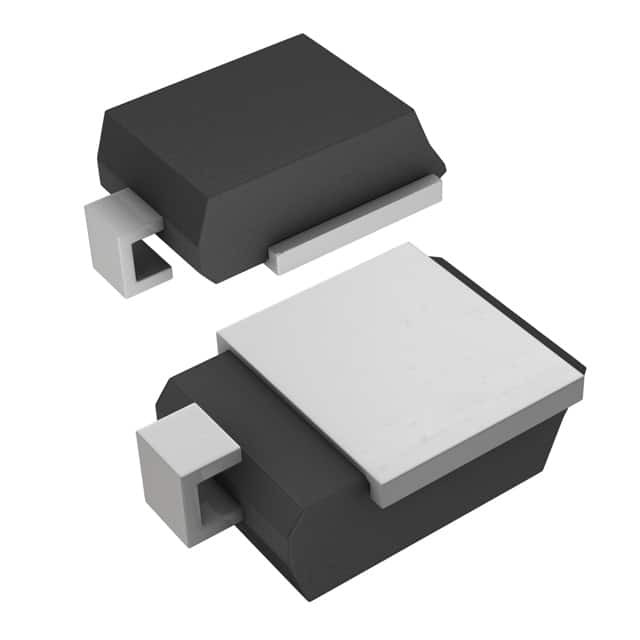

SM5S36A-AU_R2_000A1 Panjit
Same model may have multiple batches, images only for reference.

SM5S36A-AU_R2_000A1

Part No SM5S36A-AU_R2_000A1
Manufacturer Panjit
Catalog TVS - Diodes
Description 3.6KW SURFACE MOUNT TRANSIENT VO / 58.1V Clamp 62A Ipp Tvs Diode Surface Mount DO-218AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Panjit International Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36V
Voltage - Breakdown (Min) 40V
Voltage - Clamping (Max) @ Ipp 58.1V
Current - Peak Pulse (10/1000µs) 62A
Power - Peak Pulse 3600W (3.6kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case DO-218AB
Supplier Device Package DO-218AB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-SM5S36A-AU_R2_000A1CT,3757-SM5S36A-AU_R2_000A1DKR,3757-SM5S36A-AU_R2_000A1TR
Standard Package 600
Win Source Part Number 1135737-SM5S36A-AU_R2_000A1
Ultra Librarian 3D Model Ultra Librarian SM5S36A-AU_R2_000A1 CAD Model

Description

The 1135737-SM5S36A-AU_R2_000A1 is a Zener type TVS diode designed for automotive applications.

  • Type: Zener TVS Diode
  • Application: Automotive
  • Channel Configuration: Unidirectional
  • Reverse Standoff Voltage: 36V
  • Breakdown Voltage (Minimum): 40V
  • Clamping Voltage: 58.1V @ 62A (10/1000µs)
  • Peak Pulse Power: 3600W (3.6kW)
  • Package: DO-218AB
  • Operating Temperature Range: -55°C to 175°C (TJ)
  • Manufacturer: Panjit International Inc.
